Mitee Bite Special Model OK Vise® Clamp Holding Force (lbs): 22000 Max Torque (ft-lbs): 250
Mitee Bite Special Model OK Vise® Clamp Holding Force (lbs): 22000 Max Torque (ft-lbs): 250
SKU: 47175
Brand: Mitee Bite
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Model: FK2-VT-T

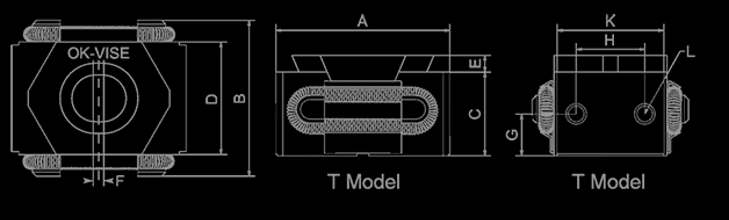

- Min A (inch): 2.40
- Dim A (inch): 2.56
- Max A (inch): 2.76
- Dim B (inch): 2.20
- Dim C (inch): 1.14
- Dim D (inch): 1.65
- Dim E (inch): 0.19
- Dim G (inch): 0.57
- Dim H (inch): 1.02
- Dim K (inch): 1.57
- Dim L (inch): M5
- Mounting Screw Included: 5/8-11 x 1 1/2 SHCS
- Max Torque (ft-lbs): 250
- Holding Force (lbs): 22000
- Hardness of Jaws (HRC): 30 – 34
- THREE-DIMENSIONAL MACHINING:
- Due to a low-profile design of OK-VISE® Clamps, it is possible to execute flexible three-directional machining of workpieces with one fastening. This ability to machine a workpiece in three planes means improved accuracy.
- PULL DOWN ACTION:
- The single wedge clamps keep the workpieces steadily in place, not allowing upward or downward movement. The double-wedge clamps generate a pull-down action pressing the workpieces towards the fixture base.
- MACHINABLE JAWS:
- Single-wedge clamps are also available with extended jaws that can be machined to suit the geometry of the workpiece.
- SPECIAL MODELS:
- “E”: (Balls on each Jaw) A self adjusting serrated steel ball is helpful when clamping castings and workpieces of irregular shape.
- “T”: Jaws tapped with M5 threads for socket head screws allowing for quick and easy use of various different additional pieces.
- “SS”: BK2 is available in high quality stainless steel to meet the demands of EDM applications.
- ECONOMY MODEL:
- “O”: Not ground as precise as standard models. Same raw material is being used and the bottom of the jaws are ground for precise locating on the fixture base.
Tapped Jaws
