Carr Lane Hand Wheel, Aluminum, 7.87 Inch Diameter

SKU: CL-8-HWFA
Brand: Carr Lane

Hand Wheel

$66.50

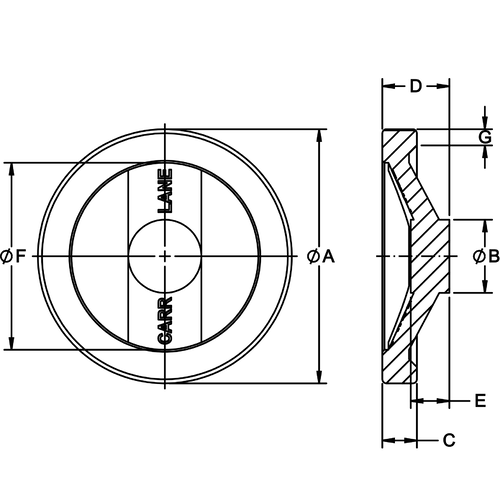

Additional Information

  • A DIA (inch): 7.87
  • B DIA (inch): 1.65
  • C (inch): 0.83
  • D (inch): 1.97
  • E (inch): 0.945
  • E (inch): 0.945
  • F DIA (inch): 6.10
  • G (inch): 0.433
  • Material: Aluminum

High-quality, modern-design with the choice of aluminum or stainless steel Hand Wheel with two spokes. Rim is machined and highly polished on all sides. Spokes are shot blasted to a satin finish. Available in four sizes, from 5" to 10" diameter. These Hand Wheels are finish-bored to the standard shaft diameter for their size, exactly concentric and square to the rim, and can be tapped for a Solid or Revolving Handle (order separately). See Related Products below for matching solid-design stainless steel handles, and other handle options.
