TE-CO 8″ Single Station Vise, Clamping Force (lb): 12000
TE-CO 8″ Single Station Vise, Clamping Force (lb): 12000
SKU: PWS-8110
Brand: TE-CO

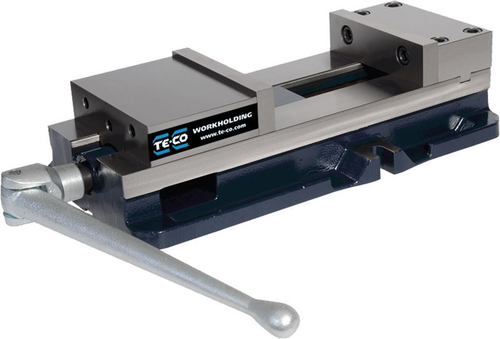

8″ Single Station Vise
$1,895.00
Additional Information
- Type: Single Station
- Style: Machinable Jaws
- Clamping Force (lb): 12000
- Jaw Opening (inch): 11.00
- Jaw Width (inch): 8.00
- Total Length (inch): 24.47
- Total Width (inch): 11.50
- Total Height (inch): 5.51
- Material: Ductile Iron
- Weight (lb): 175
- Powder coated paint resists flaking and peeling
- 80,000psi ductile iron body with increased nickel content for improved corrosion resistance
- Hardened vise bed and jaw plates
- Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque
- Up to 12,000 lbs (53,379N) of clamping force
- Repeatability within .001″ (0.025mm)
- Outside rails of body are machined within 0.0005″ (.013mm) square to jaw
- Bed height matched to size 3.310″ +/- 0.0005″ (84.07mm +/- .013mm)
- Footprint and distance from the keyway to stationary jaw meets industry standard
