Jergens Ball Lock® Fixture Plate, Plate Size (inch): 16 x 26, Thickness (inch): 1, Material: Steel
Jergens Ball Lock® Fixture Plate, Plate Size (inch): 16 x 26, Thickness (inch): 1, Material: Steel
SKU: 28843
Brand: Jergens
Ball Lock® Fixture Plate
$980.00
Additional Information
- Material: Steel

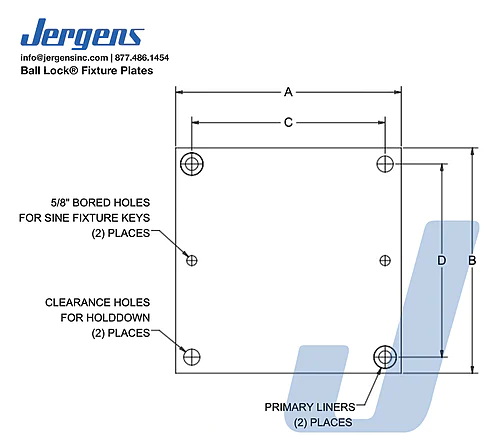

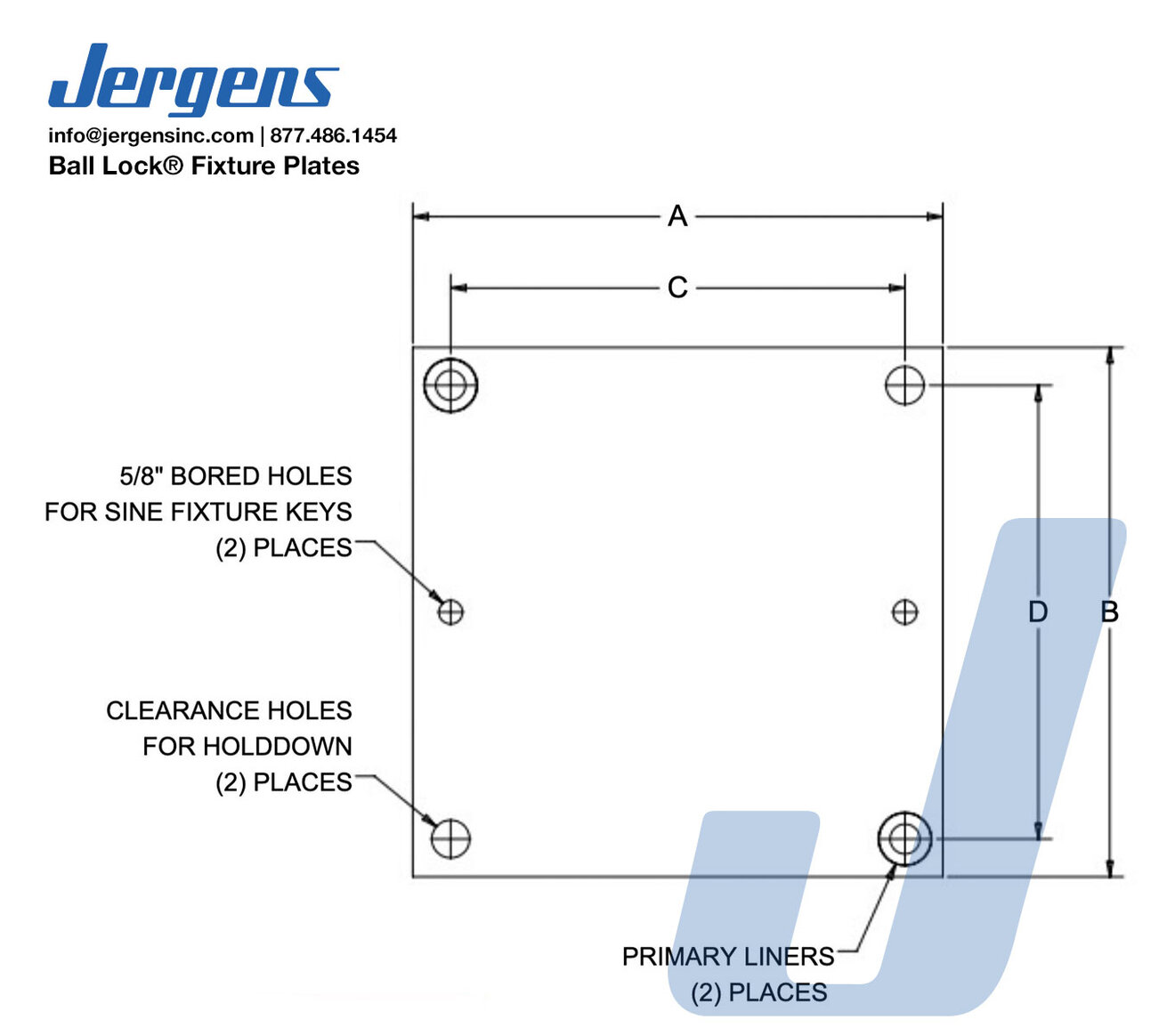

- A (inch): 16
- B (inch): 26
- C (inch): 11.5
- D (inch): 23
- Thickness (inch): 1
- Liner Size (mm): 25
- Shank Part Number: 49612
- Pallet Size (mm): 630
- Column Part Number: 69021
- Column Type: 4-Sided
- Weight (lb): 118
- Materials: Cast Aluminum FreMax™ 15 Steel or Equivalent
- Reduces fixture set-up and assembly time
- Thickness Tolerance: ±0.005″ (±0.13mm)
- Repeatability: ±0.0005″ (±0.013mm) or better
- Parallel within 0.001″ (0.025mm)
- (2) Primary Liners installed
Jergens Ball Lock® Fixture Plates are for horizontal or vertical machining centers, toolroom mills, or multiple pallet machining centers. Each fixture plate is machined to close tolerances and reduces fixture set-up assembly time. 6061–T-651 Aluminum Ball Lock® Fixture Plates for Tooling Columns flat within 0.001" (0.03mm) are available upon request.
