Helmholtz Thin Plate Lifter 330 lbs Capacity 0.39″ Min Thickness
Helmholtz Thin Plate Lifter 330 lbs Capacity 0.39″ Min Thickness
SKU: SAFER-T 150
Brand: Helmholtz
With a lower flux depth than our general purpose lifter For safe handling of thin plates. Safely De-stack thin plates one at a time. Now with SAFER-T, you can handle thin plate easily and safely.
$701.00
Additional Information
- Model: SAFER-T
- Size: 150

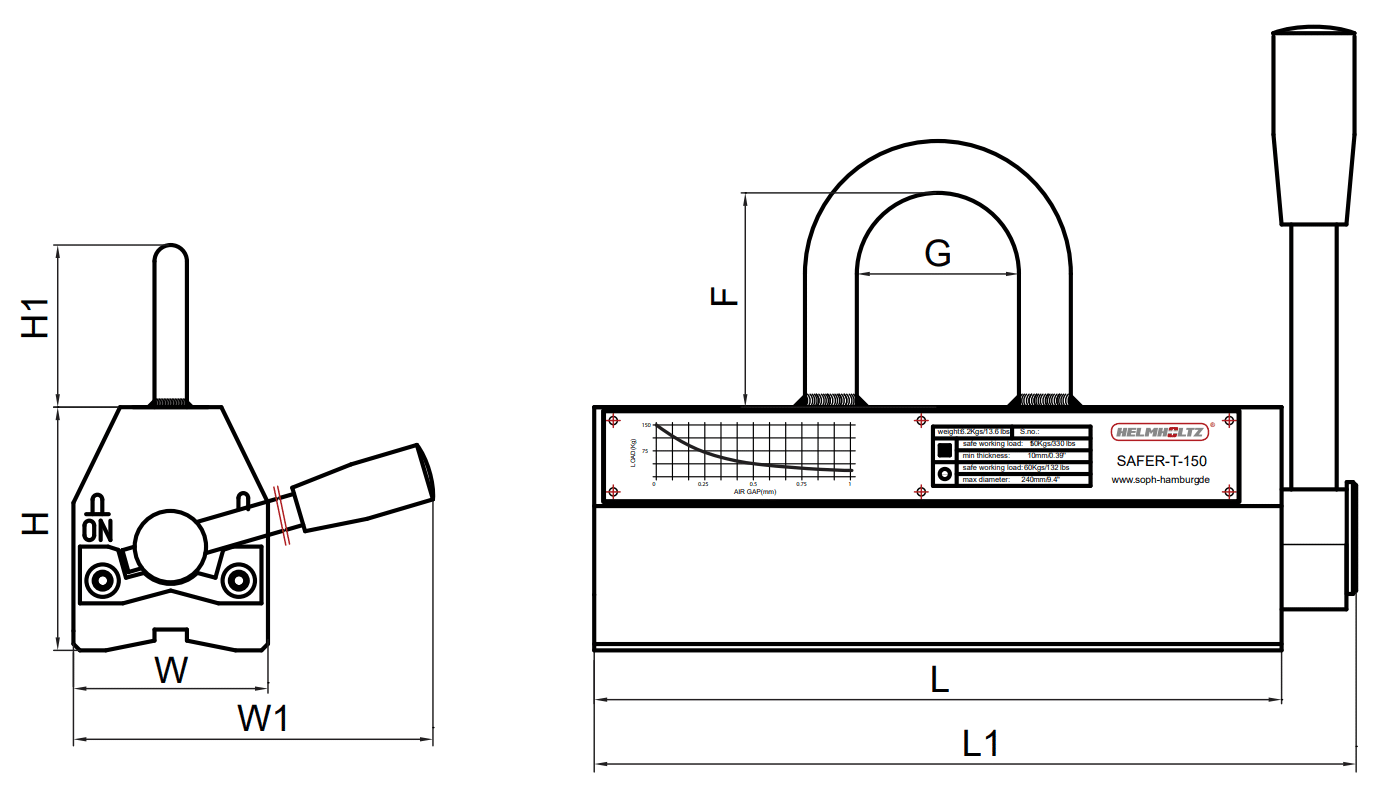

- Width (inch): 2.36
- Length (inch): 8.07
- Height (inch): 2.95
- Dimension H1 (inch): 1.97
- Dimension W1 (inch): 6.38
- Dimension L1 (inch): 8.78
- Dimension G (inch): 1.18
- Dimension F (inch): 1.57
- Net Weight (lb): 24
- Max Flat Load (lb): 330
- Min Load Thickness (inch): 0.39
- Max Load Length (inch): 47.24
- Max Round Load (lb): 132
- Max Round Load Diameter (inch): 7.09
- Special design allows controlled depth of flux
- High power with shallow flux depth, Specifically designed for de-stacking thin plates
- Still good on the thick plates
- “SAFER” test lift function
- Plate down to 10mm(0.39”), bar, pipe, slab, block, mold, dies, castings and crop end material handling
