Good Hand Pneumatic Clamp, Holding Capacity (kg): 68
Good Hand Pneumatic Clamp, Holding Capacity (kg): 68
SKU: GH-10101-A
Brand: Good Hand
Pneumatic Clamp
$100.00
Additional Information
- Holding Capacity (kg): 68
- Stroke (mm): 31.4
- Weight (kg): 0.28
- Spindle Supplied: GH-FC-10138
- Cylinder Bore (mm): 20
- Max Cylinder Air Pressure (kgf/cm2): 10
- Bar Opens (degrees): 82

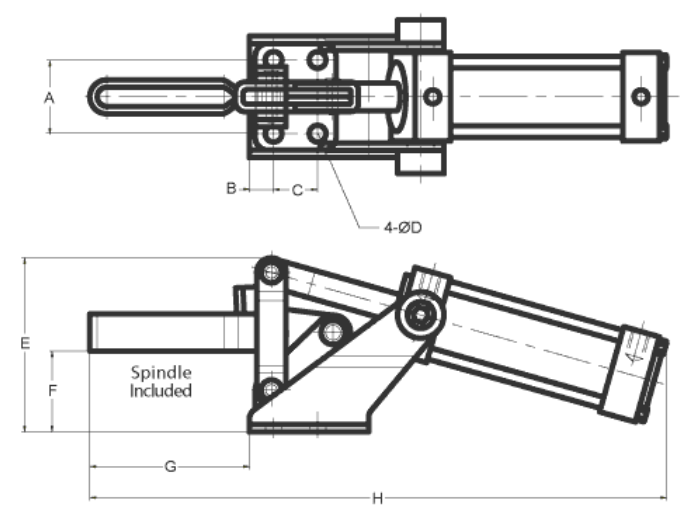

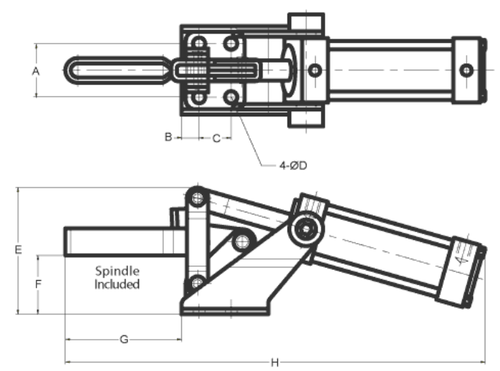

- A (mm): 23.8
- B (mm): 4.8
- C (mm): 15.9
- D (mm): 4.4
- E (mm): 40.7
- F (mm): 17.5
- G (mm): 24
- H (mm): 168.5
