Carr Lane Shoulder Pin, 1/4 Inch Shank Diameter
Carr Lane Shoulder Pin, 1/4 Inch Shank Diameter
SKU: CL-7-SP
Brand: Carr Lane
Shoulder Pin
$12.78
Additional Information

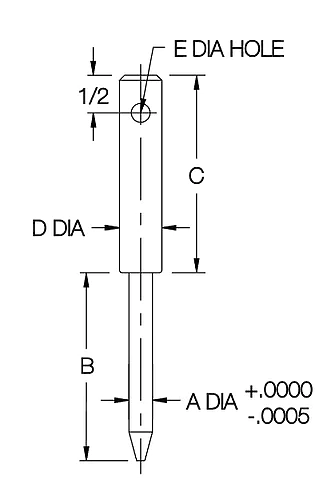

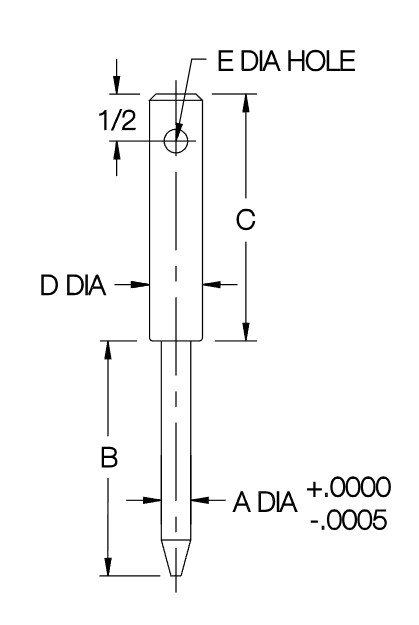

- A DIA NOMINAL (inch): 1/4
- A DIA ACTUAL (inch): .2500
- B (inch): 2-1/2
- C (inch): 2-5/8
- D DIA (inch): 1/2
- E (inch): 1/4
- Material: 1215 Steel
- Heat Treat: Carburized-Hardened
- Finish: Black Oxide
- Shoulder Pins can be used for accurately aligning two plates
Removable locating pins with a straight handle, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Available in pin diameters from 1/4 to 1/2" (6 to 12mm in metric). Made in USA.
