Name: Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 625, Open Arm, Straight Base, Steel
Brand: Carr Lane
SKU: CL-252-TC
Availability: InStock

Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 625, Open Arm, Straight Base, Steel

SKU: CL-252-TC

Brand: Carr Lane

View Specs

Horizontal Toggle Clamp

$25.14

Additional Information

Clamping Force (lbf): 625
Arm Type: Open Arm
Base Type: Straight Base
Style: Steel

Material: 1008, 1010, and/or 1018 Steel (Clamp Body),
Finish: Zinc plated clear chromate

Accepts any 1/4-20 or M6 spindle and (2) CL-148-TW flanged washers. For fixed spindle location, use weld-on bolt retainer CL-1458-S instead of the flanged washers. To order accessories, Contact Us.

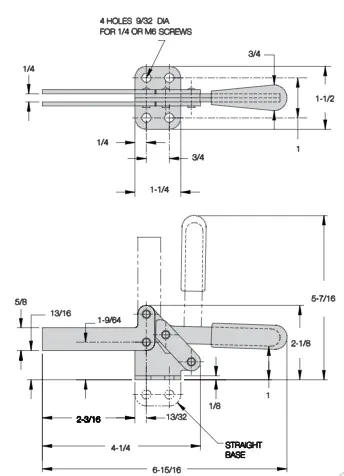

Classic-design horizontal-handle clamp with a low clamping arm. Arm opens 90? while handle moves 90?. Open arm provides adjustable spindle location. Choice of flanged base or straight base. 625 lbs holding capacity.
