Carr Lane Hand Wheel, Aluminum, 5.90 Inch Diameter
Carr Lane Hand Wheel, Aluminum, 5.90 Inch Diameter
SKU: CL-6-HWFA
Brand: Carr Lane
Hand Wheel
$39.63
Additional Information

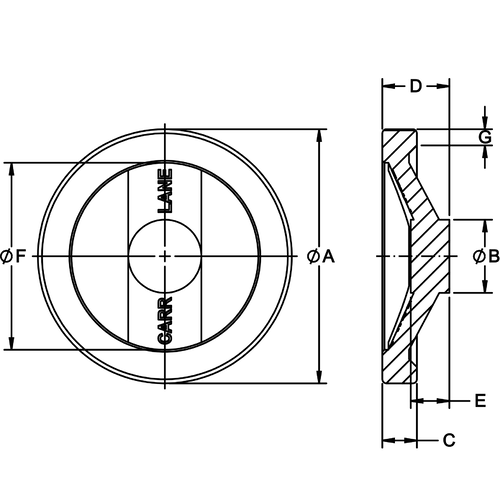

- A DIA (inch): 5.90
- B DIA (inch): 1.42
- C (inch): 0.71
- D (inch): 1.57
- E (inch): 0.827
- E (inch): 0.827
- F DIA (inch): 4.41
- G (inch): 0.394
- Material: Aluminum
High-quality, modern-design with the choice of aluminum or stainless steel Hand Wheel with two spokes. Rim is machined and highly polished on all sides. Spokes are shot blasted to a satin finish. Available in four sizes, from 5" to 10" diameter. These Hand Wheels are finish-bored to the standard shaft diameter for their size, exactly concentric and square to the rim, and can be tapped for a Solid or Revolving Handle (order separately). See Related Products below for matching solid-design stainless steel handles, and other handle options.
