Carr Lane Cast Aluminum Adjustable Clamp, Clamping Range 0 – 2 Inch
Carr Lane Cast Aluminum Adjustable Clamp, Clamping Range 0 – 2 Inch
SKU: CL-8-VAC
Brand: Carr Lane
Cast Aluminum Adjustable Clamp
$13.85
Additional Information

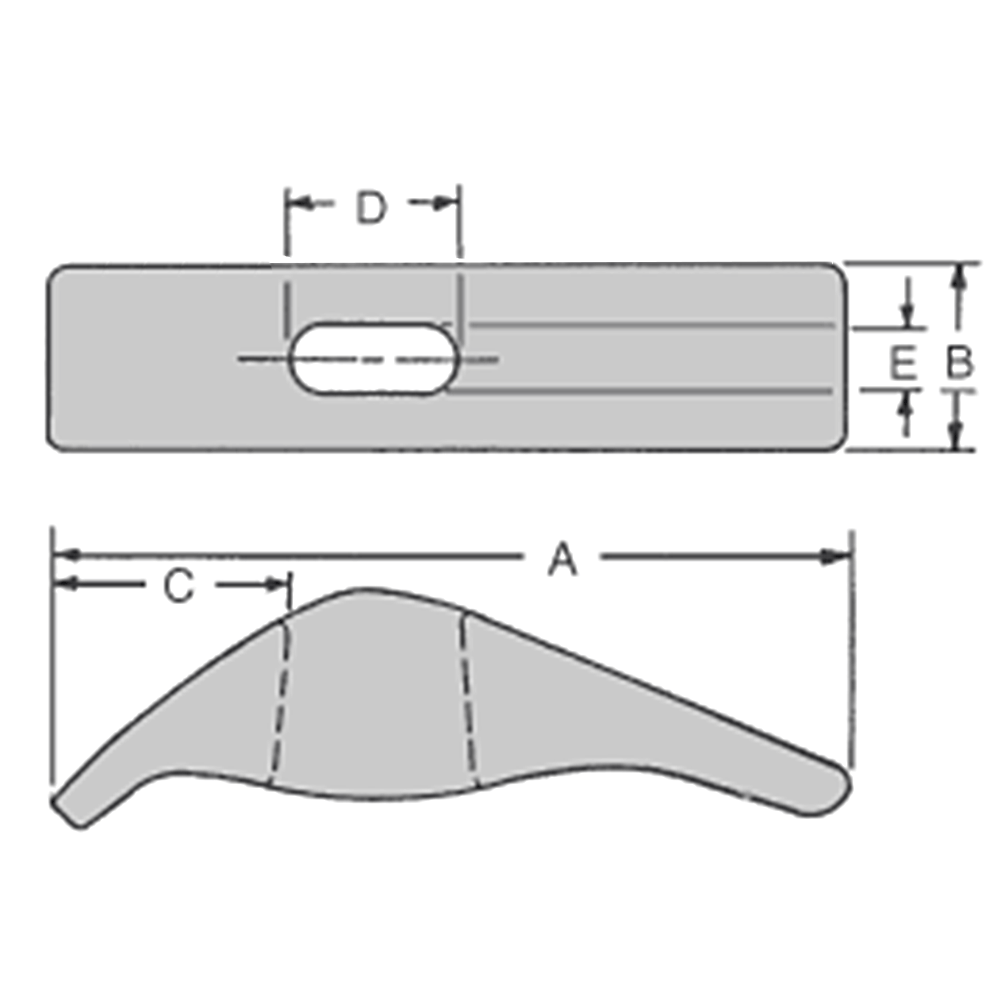

- STUD SIZE: 3/8 or M10
- CLAMPING RANGE (inch): 0 – 2
- A (inch): 4-7/8
- B (inch): 1-1/8
- C (inch): 1-3/8
- D (inch): 1
- E (inch): 13/32
- Material: Aluminum

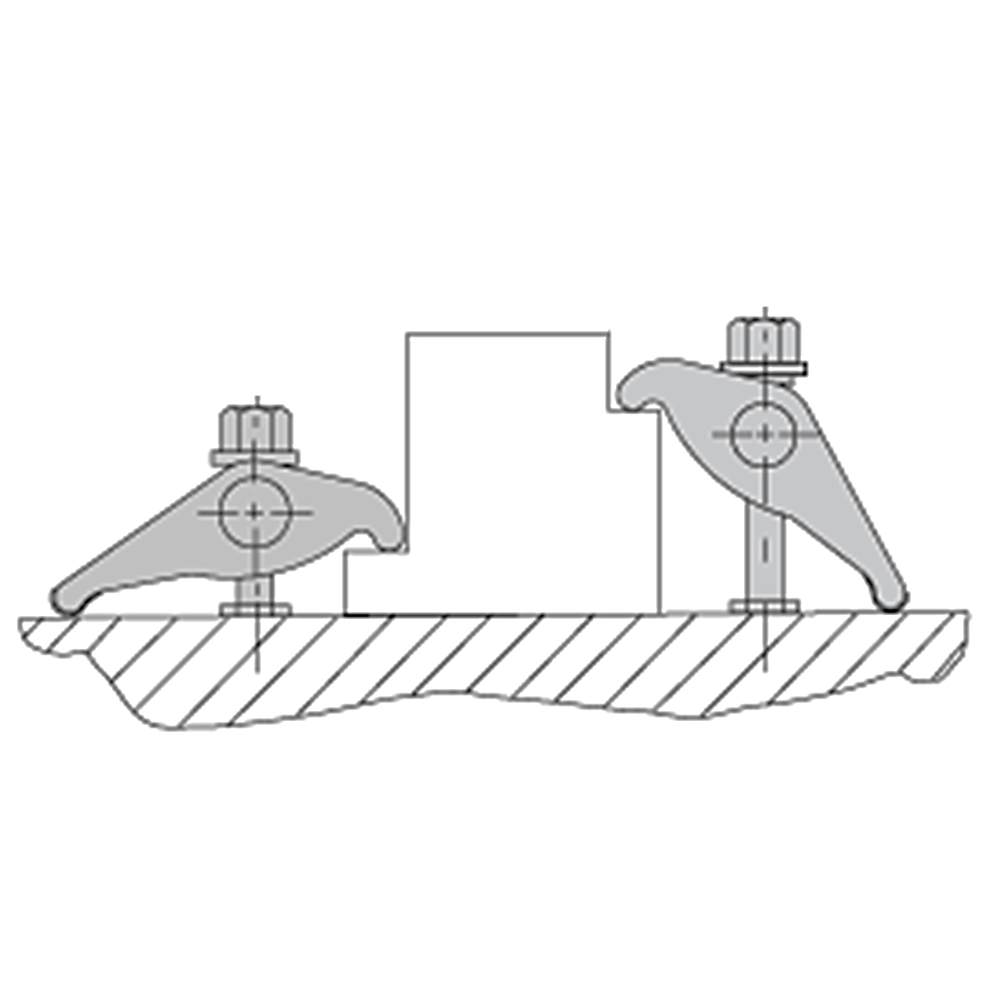

Simple, economical aluminum clamp for medium-force clamping. Provides instant height adjustment without blocks or shims. Soft aluminum material protects both the workpiece and the machine table from damage. Turn clamp 90° in either direction for loading clearance. Available in two clamp sizes, to fit stud sizes 3/8-16 and 1/2-13 (M10 and M12 in metric). Made in USA.
For a complete clamp assembly, order the following additional items separately: Fully Threaded Stud, Flange Nut, Jam Nut
