Trumpf Seam Locker for 0.6 mm – 1.4 mm Steel
Trumpf Seam Locker for 0.6 mm – 1.4 mm Steel
SKU: TruTool F 140
Brand: Trumpf
TruTool F 140
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Maximum sheet thicknesses:
- Maximum sheet thickness steel 400 N/mm²: 0.45 mm
- Maximum sheet thickness steel 600 N/mm²: 1 mm
- Flange height (B):
- Flange height (B) with sheet thickness 0.6 – 1.0: 8 mm – 10 mm
- Flange height (B) with sheet thickness > 1.0 – 1.4: 10 mm – 12 mm
- General:
- Flange Height (H): 10 mm – 15 mm
- Working speed (max.): 10 m/min
- Nominal power consumption: 550 W
- Air gap (C): 2.5 mm

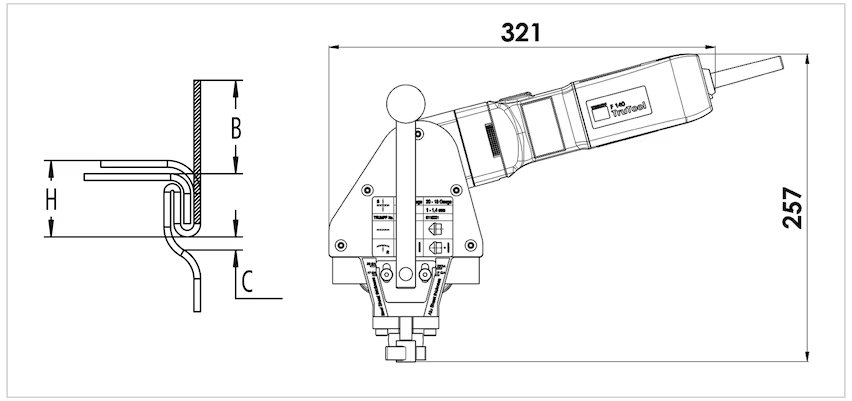

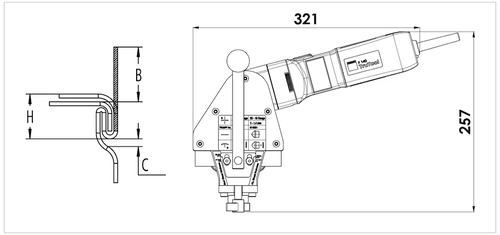

- Dimensions:
- Length: 321 mm
- Height: 257 mm
- Weight: 4.3 kg
- For closing Pittsburgh seams on straight or curved ducts with flange heights of 9 mm – 13 mm and sheet thicknesses of 0.75 mm – 1.25 mm for mild steel
The TruTool F 140 seam locker is ideal for mild steel and stainless steel and locks large radii on straight as well as curved ducts. For sheet thicknesses of 0.6 mm – 1.4 mm.
