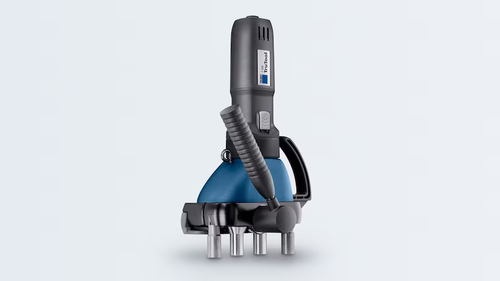

Trumpf Seam Locker for 0.03 – 0.05″ Steel
Trumpf Seam Locker for 0.03 – 0.05″ Steel
SKU: TruTool F 300
Brand: Trumpf
TruTool F 300
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Maximum sheet thicknesses:
- Maximum sheet thickness steel 400 N/mm² (minimum): 0.75 mm
- Maximum sheet thickness steel 400 N/mm² (Maximum): 1.25 mm
- Flange height (B):
- Flange height (B) with sheet thickness 0.75 – 1.0: 9 mm – 11 mm
- Flange height (B) with sheet thickness > 1.0 – 1.25: 11 mm – 13 mm
- Radii:
- Smallest inner radius (preformed): 150 mm
- Smallest outer radius: 300 mm
- General:
- Working speed (max.): 7 m/min
- Nominal power consumption: 550 W

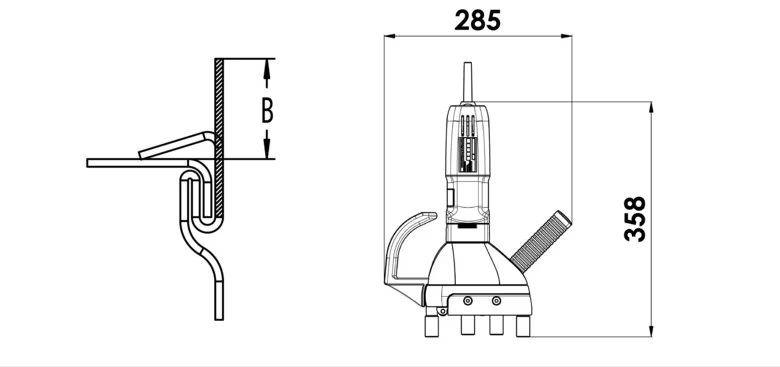

- Dimensions:
- Length: 285 mm
- Height: 358 mm
- Weight: 5.5 kg
- For closing Pittsburgh seams on straight or curved ducts with flange heights of 9 mm – 13 mm and sheet thicknesses of 0.75 mm – 1.25 mm for mild steel

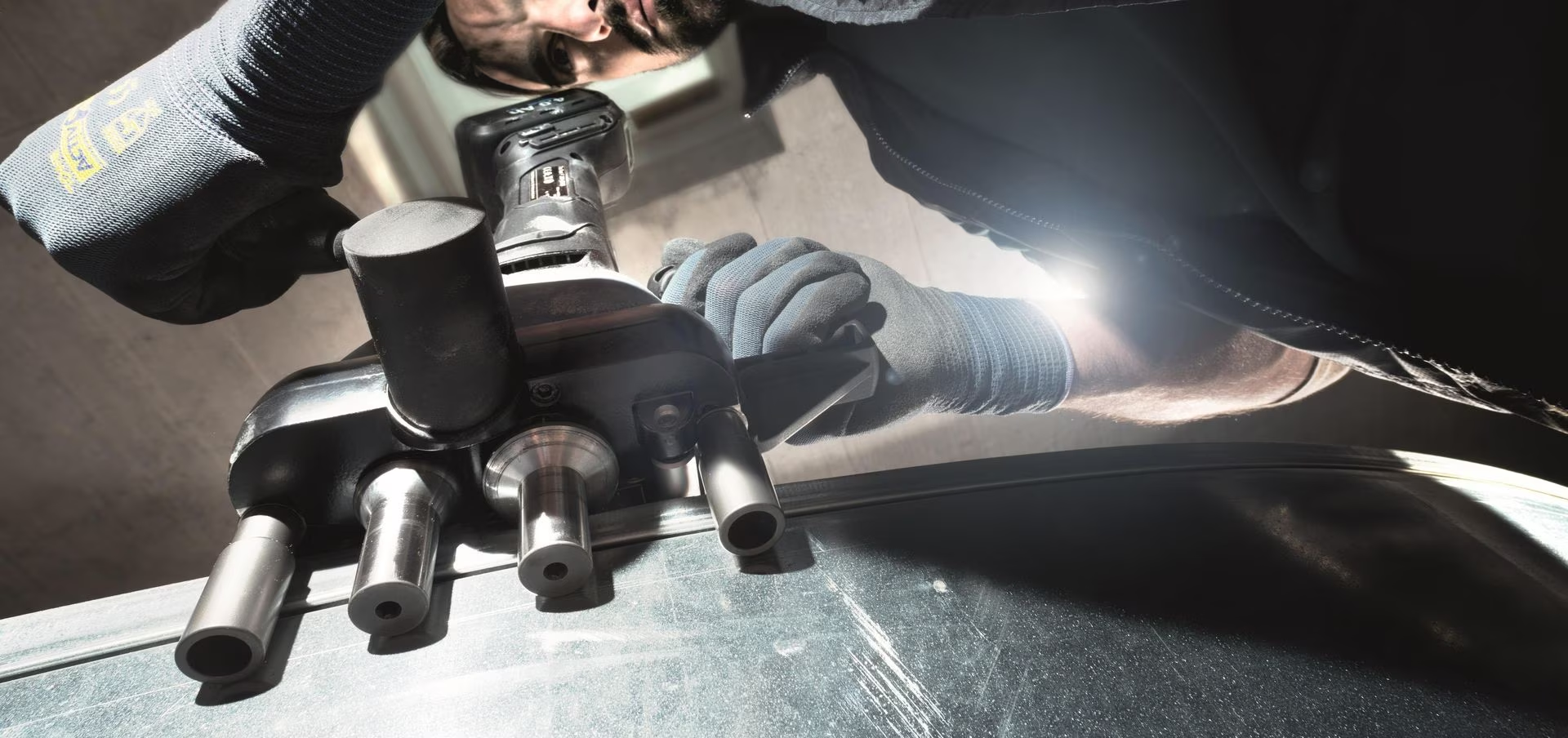

You can use the TruTool F 300 seam locker to work in sheet thicknesses of 0.03 - 0.05 in mild steel and lock straight as well as curved ducts.
