ROEMHELD Threaded-Body Cylinder, Radius Plunger, 5530 lb Clamping Force
ROEMHELD Threaded-Body Cylinder, Radius Plunger, 5530 lb Clamping Force
SKU: CLR-300-TB
Brand: ROEMHELD
Threaded-Body Cylinders – Radius Plunger, B1.460
$159.31
Additional Information
- Maximum Clamping Force (lb): 5530
- E Body Thread: 1-1/2″-16
- D Piston Dia (mm): 25
- Clamping Stroke (mm): 16

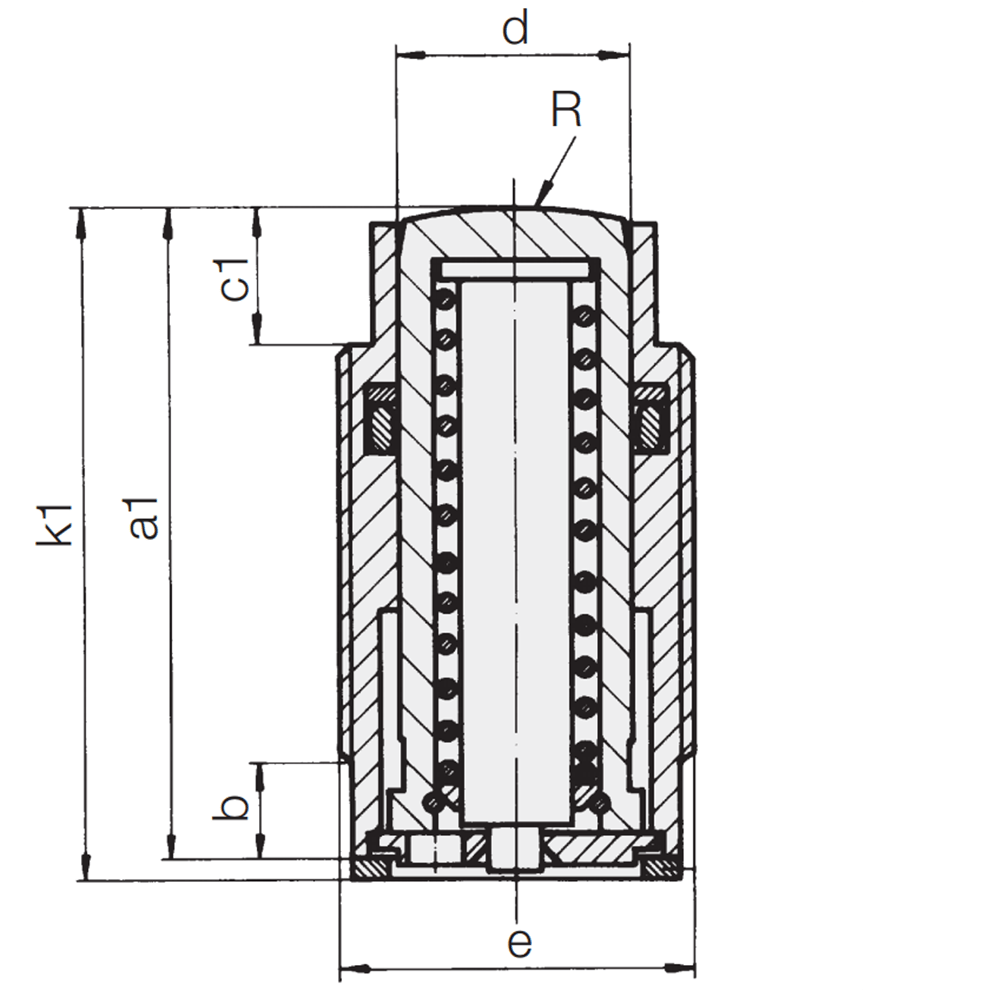

- A1 (mm): 58
- B (mm): 11
- C1 (mm): 13.5
- K1 (mm): 59.5
- R (mm): 40
- SW1: 1-1/4
- SW2: 3/4
- Seating Torque (ft-lb): 59
- Weight (lb): 0.8
- Material: Steel

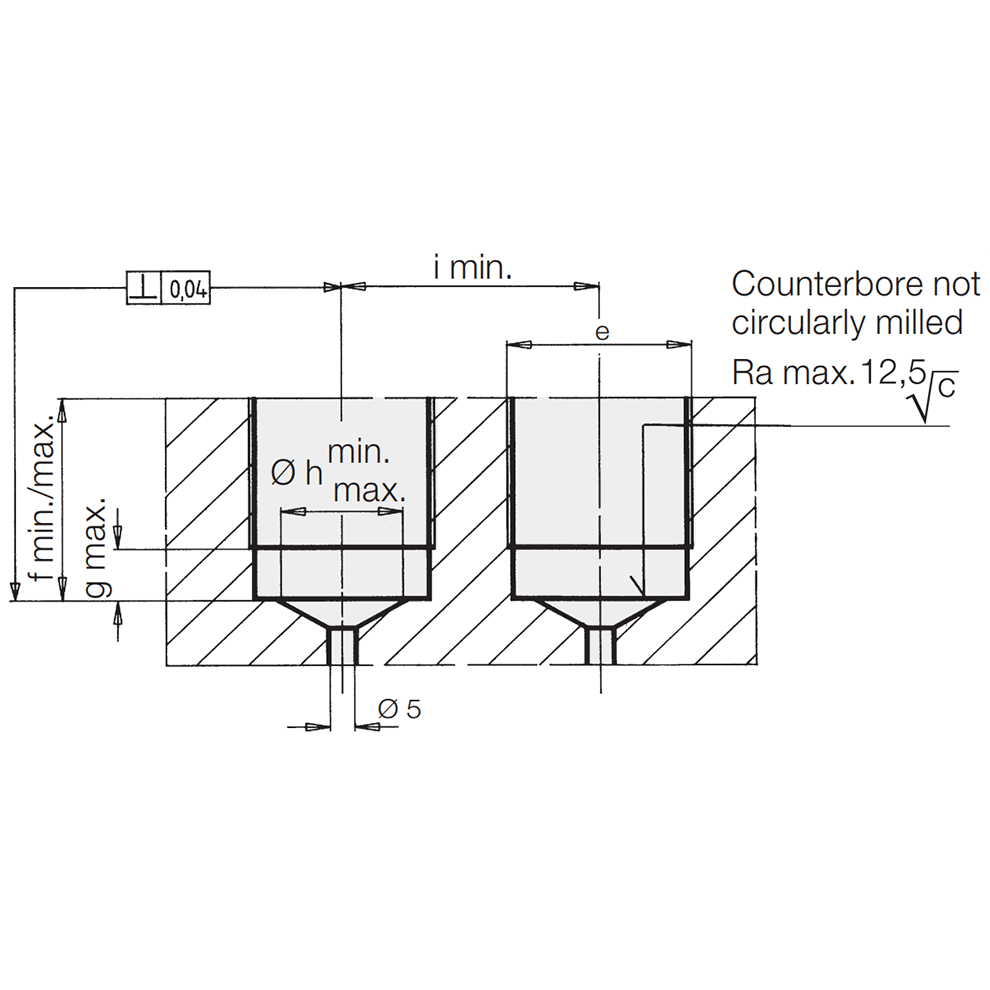

Versatile push clamps that provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted. Clamps can be screwed all the way down to their hex flats, or installed at partial depth. Long plunger guide ensures excellent reliability and durability. Available in five body diameters, with inch or metric threads, with a choice of tapped plunger, radius plunger, or swivel plunger. Clamping force at 7250 psi.
