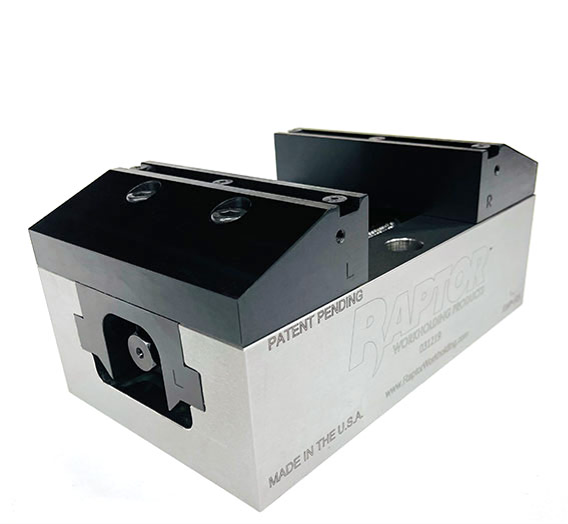

Raptor Self Center Vise 150mm Jaw Face Width
Raptor Self Center Vise 150mm Jaw Face Width
SKU: RWP-505
Brand: Raptor
150mm Wide – Self Centering Vise
This product is not available for online purchase as shipping costs must be custom quoted.
Request Quote$3,685.10
Additional Information
- Base Dimensions (L x W inch): 9.84 x 5.91
- Bed Height (inch): 2.95
- Jaw Opening (inch): 0-3.88
- Jaws Reversed (inch): 9.25
- Maximum Allowed Torque (ft/lbs): 75
- Clamping Force @ Max Torque: 6000 lbs
- Centering Tolerance: +/- 0.0005″
- Piranha Zero-Point Adaptable: Yes
- All steel construction
- Automatically positions workpiece in center of vise. Centering tolerance is +/-0.0005″ (+/-0.013mm) and repeatability is 0.001″
- Jaws adjust from either end of vise
- Jaw clamping range is 0-3.87″ as shown and 4.75″-9.25″ with jaws reversed
- Insert options available for a variety of holding applications: Dovetail, Serrated, Parallels, TalonGrip™ , Talon Stop, & Soft Jaws. (all sold separately)
- Utilizes two dowel pins: one for centering and one for locating
- Jaw accessory screws included – (6) FHCS.
