Raptor Piranha Multi-Clamp Vise Rail 700 x 50mm
Raptor Piranha Multi-Clamp Vise Rail 700 x 50mm
SKU: 574050-700
Brand: Raptor
700 x 50 mm Multi-Clamp Vise Rail
$4,191.00
Additional Information

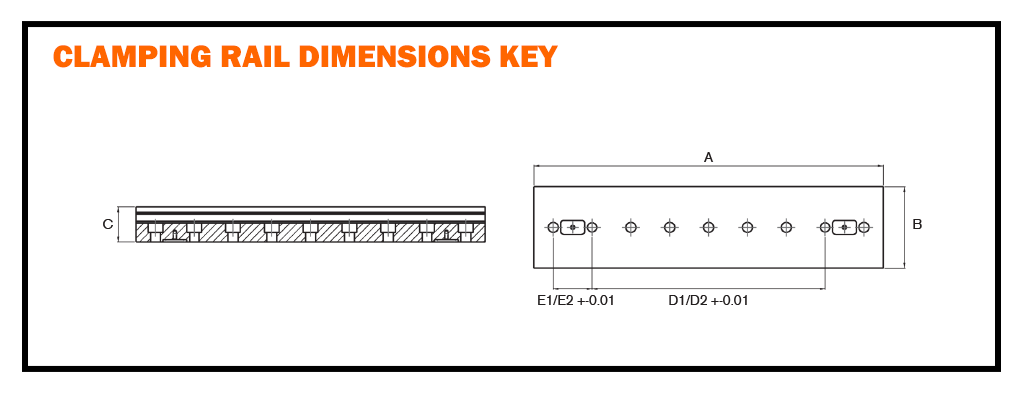

- Base Dimensions (L x W mm): 700 x 50
- A (mm): 700
- B (mm): 50
- C (mm): 40
- E1 (mm): 40
- D1 (mm): 400
- E2 (mm): 50
- D2 (mm): 400
- Max Clamping Force: 2,922 @ 15 ft-lbs
- Jaw Width Compatibility (mm): 50

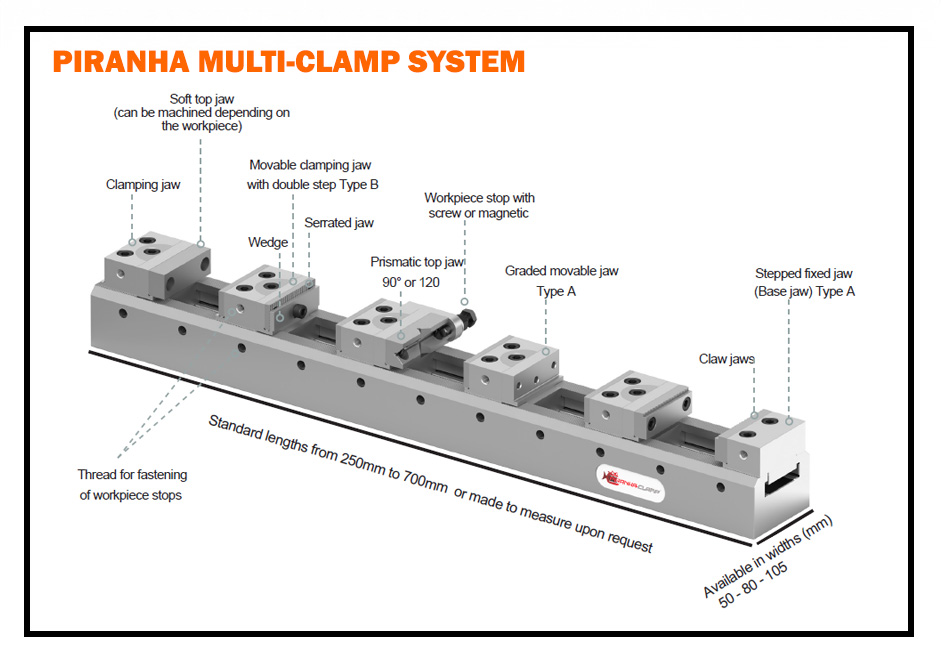

- This system is built around a steel clamping rail with standard lengths from 250mm up to 700mm and standard widths of 50mm, 80mm and 105mm.
- Piranha Multi-Clamp offers a wide variety of clamping modules that bolt to the vise bed, locating on the 1mm, 60-Rockwell, serrations to maximize clamping repeatability. By utilizing the various clamping modules, the Piranha Multi-Vise can accommodate various clamping requirements needed in today’s machining environments.
- Each clamping module utilizes linear clamping with a single screw moving a conical shaped wedge, exerting up to 3,500 lbs. of maximum, uniform holding pressure on the clamped part. The optional jaw offerings allow the customer to clamp on parallels, serrated jaws or “V” jaws.
- The optional jaw offerings allow the customer to clamp on parallels/serrated jaws or “V” jaws.
This system is built around a steel clamping rail with standard lengths from 250mm up to 700mm and standard widths of 50mm, 80mm and 105mm. Piranha Multi-Clamp offers a wide variety of clamping modules that bolt to the vise bed, locating on the 1mm, 60-Rockwell, serrations to maximize clamping repeatability. By utilizing the various clamping modules, the Piranha Multi-Vise can accommodate various clamping requirements needed in today’s machining environments. Each clamping module utilizes linear clamping with a single screw moving a conical shaped wedge, exerting up to 3,500 lbs. of maximum, uniform holding pressure on the clamped part. The optional jaw offerings allow the customer to clamp on parallels, serrated jaws or “V” jaws. The optional jaw offerings allow the customer to clamp on parallels/serrated jaws or “V” jaws.
