PAC Precision Tools CAT40-SLN7/8″-3-1/2″-CF Cool-Flange End Mill Holder
PAC Precision Tools CAT40-SLN7/8″-3-1/2″-CF Cool-Flange End Mill Holder
SKU: 617010
Brand: PAC Precision Tools

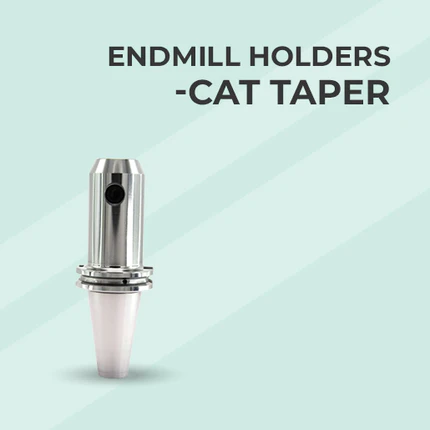

End Mill Holders – CAT Taper
This product is not available for online purchase as shipping costs must be custom quoted.
Request Quote$95.00
Additional Information
- Taper: CAT40
- ID Bore Size d1 (inch): 7/8Proj. Length L1 (inch)
- OD Size d2 (inch): 2.047
- Set Screw Part Number: ESC78
- Balanced to 25000 RPM at G2.5
- Flange Coolant AD+B feature is standard in all CAT holders
- Corrosion Proof – all holders have special rust preventive coating
- Accuracy: 0.0001″ TIR or better
- AT3 Class Taper
- H5 bore tolerance for optimum contact with cutting tool
- High precision pilot holes
- Hardness: HRC 56-58
- Carbon Depth: 0.8mm +/- 0.2mm
- Surface Roughness: Ra<0.005mm
- Crafted from case hardened alloy steel
CAT40-SLN7/8"-3-1/2"-CF Cool-Flange End Mill Holder
