Mitee Bite Special Model OK Vise® Clamp Holding Force (lbs): 5500 Max Torque (ft-lbs): 30
Mitee Bite Special Model OK Vise® Clamp Holding Force (lbs): 5500 Max Torque (ft-lbs): 30
SKU: 47112
Brand: Mitee Bite
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Model: BK2-VT-T

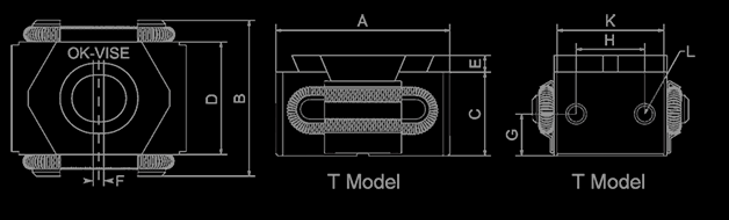

- Min A (inch): 1.30
- Dim A (inch): 1.38
- Max A (inch): 1.46
- Dim B (inch): 1.14
- Dim C (inch): 0.59
- Dim D (inch): 0.83
- Dim E (inch): 0.10
- Dim G (inch): 0.30
- Dim H (inch): 0.47
- Dim K (inch): 0.83
- Dim L (inch): M5
- Mounting Screw Included: 5/16-18 x 3/4
- Max Torque (ft-lbs): 30
- Holding Force (lbs): 5500
- Hardness of Jaws (HRC): 30 – 34
- THREE-DIMENSIONAL MACHINING:
- Due to a low-profile design of OK-VISE® Clamps, it is possible to execute flexible three-directional machining of workpieces with one fastening. This ability to machine a workpiece in three planes means improved accuracy.
- PULL DOWN ACTION:
- The single wedge clamps keep the workpieces steadily in place, not allowing upward or downward movement. The double-wedge clamps generate a pull-down action pressing the workpieces towards the fixture base.
- MACHINABLE JAWS:
- Single-wedge clamps are also available with extended jaws that can be machined to suit the geometry of the workpiece.
- SPECIAL MODELS:
- “E”: (Balls on each Jaw) A self adjusting serrated steel ball is helpful when clamping castings and workpieces of irregular shape.
- “T”: Jaws tapped with M5 threads for socket head screws allowing for quick and easy use of various different additional pieces.
- “SS”: BK2 is available in high quality stainless steel to meet the demands of EDM applications.
- ECONOMY MODEL:
- “O”: Not ground as precise as standard models. Same raw material is being used and the bottom of the jaws are ground for precise locating on the fixture base.
Tapped Jaws
