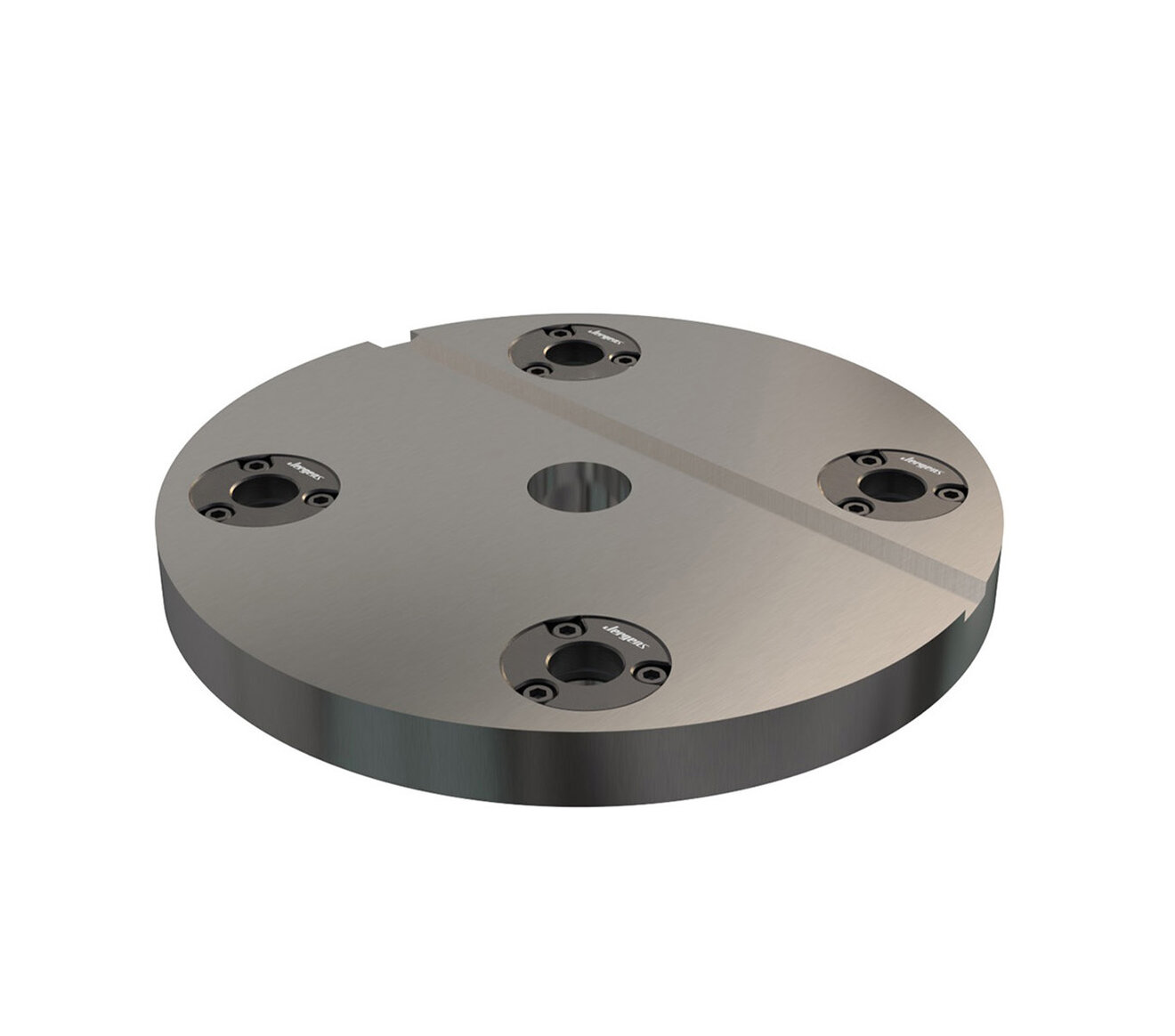

Jergens Ball Lock® Round Subplate, Plate Outside Diameter (inch): 12
Jergens Ball Lock® Round Subplate, Plate Outside Diameter (inch): 12
SKU: 49109
Brand: Jergens
Ball Lock® Round Subplate
$815.30
Additional Information

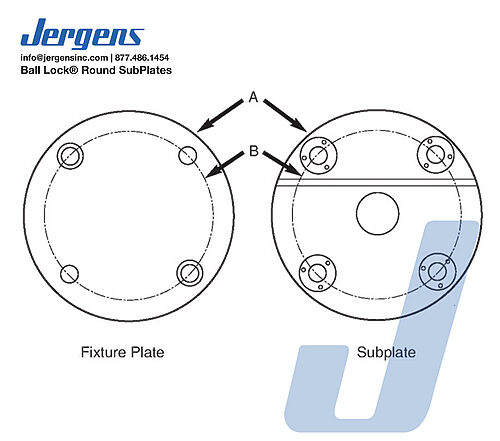

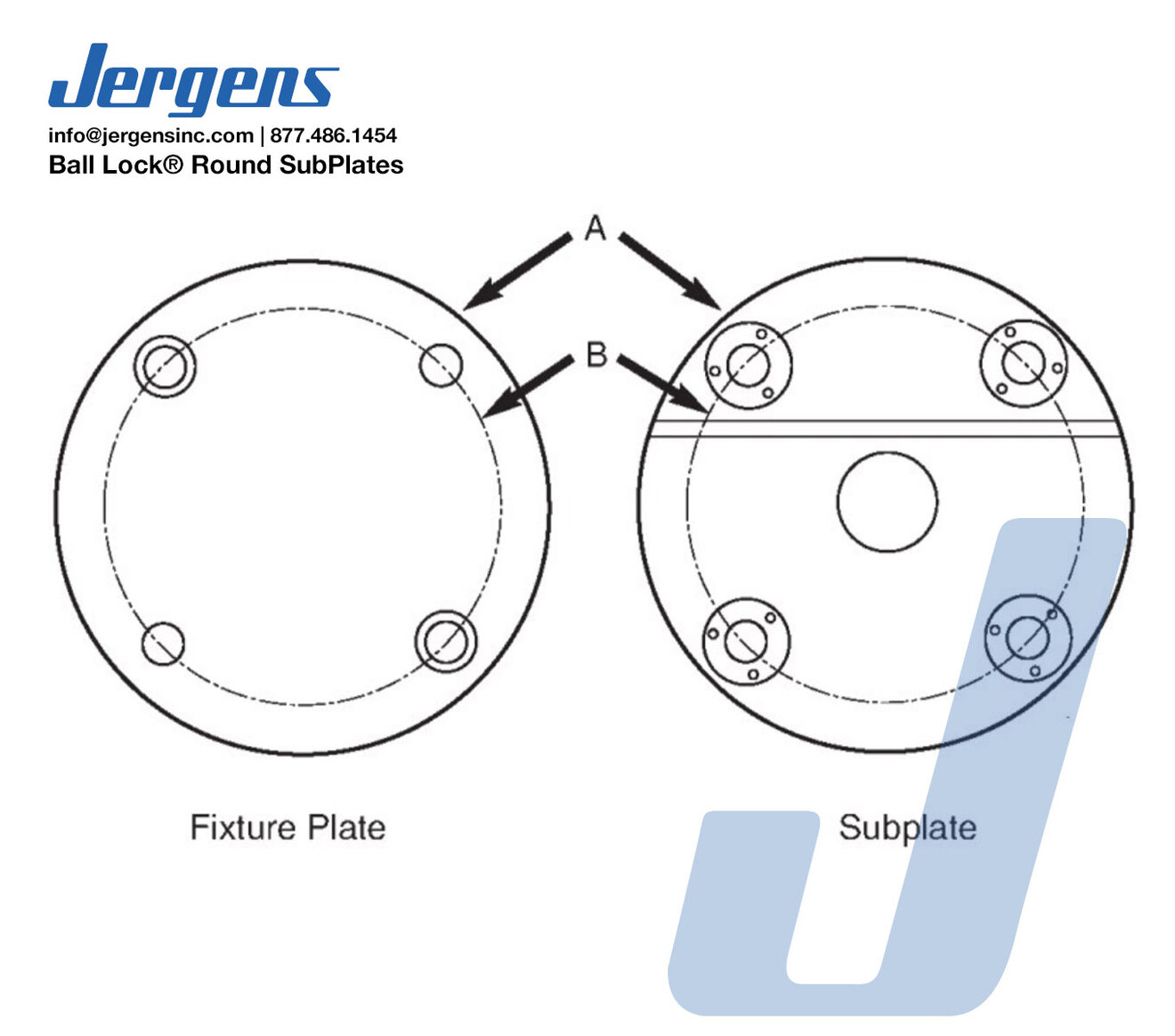

- A (inch): 12
- B (inch): 10
- Thickness (inch): 1
- Ball Lock Receiver (mm): 20
- Center Hole (inch): 2
- Weight (lb): 33.0
- Material: Cast Aluminum
- Thickness: ±0.005″ (±0.13mm)
- Parallel within 0.001″ (0.025mm)
Jergens Subplates are available in round or square shapes and are configured with our Quick Locating System (QLS) or can be customized with our Ball Lock Mounting System®. Used as a machine or rotary table adapter, our subplates mount using locating pins, sine fixture keys, locating keys and socket head cap screws (SHCS).
