Jergens Ball Lock® Modular Grid Fixture Plate, Plate Size (inch): 16 x 16, Plate Thickness (inch): 1.125, Thickness at Undercut (inch): 0.75
Jergens Ball Lock® Modular Grid Fixture Plate, Plate Size (inch): 16 x 16, Plate Thickness (inch): 1.125, Thickness at Undercut (inch): 0.75
SKU: 28800
Brand: Jergens

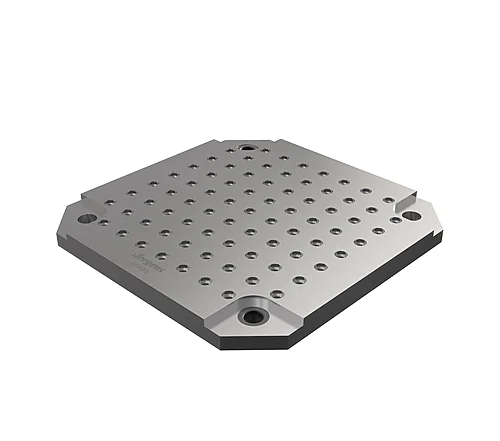

Ball Lock® Modular Grid Fixture Plate
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information

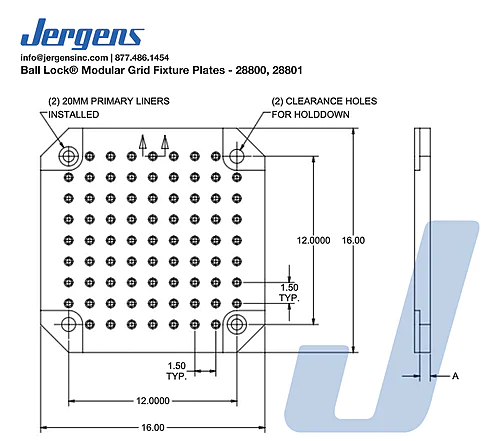

- Plate Size (inch): 16 x 16
- Fixture Plate Thickness (inch): 1-1/8
- A (inch): 0.75
- Receiver Bushing Size (mm): 20
- Mounting Grid: 12 x 12
- Ball Lock Shank Part Number: 49601
- Weight (lb): 70
- Material: FreMax™ 15 Steel or Equivalent
- Thickness: 1-1/8″ ±0.005″ (Inch), 28.57mm ±0.13mm (Metric)
- Parallel within 0.001″ (0.025mm)
Jergens Ball Lock® Modular Grid Fixture Plates mount to subplates using our Ball Lock® Shanks. Counterbored to 1" at mounting holes.
