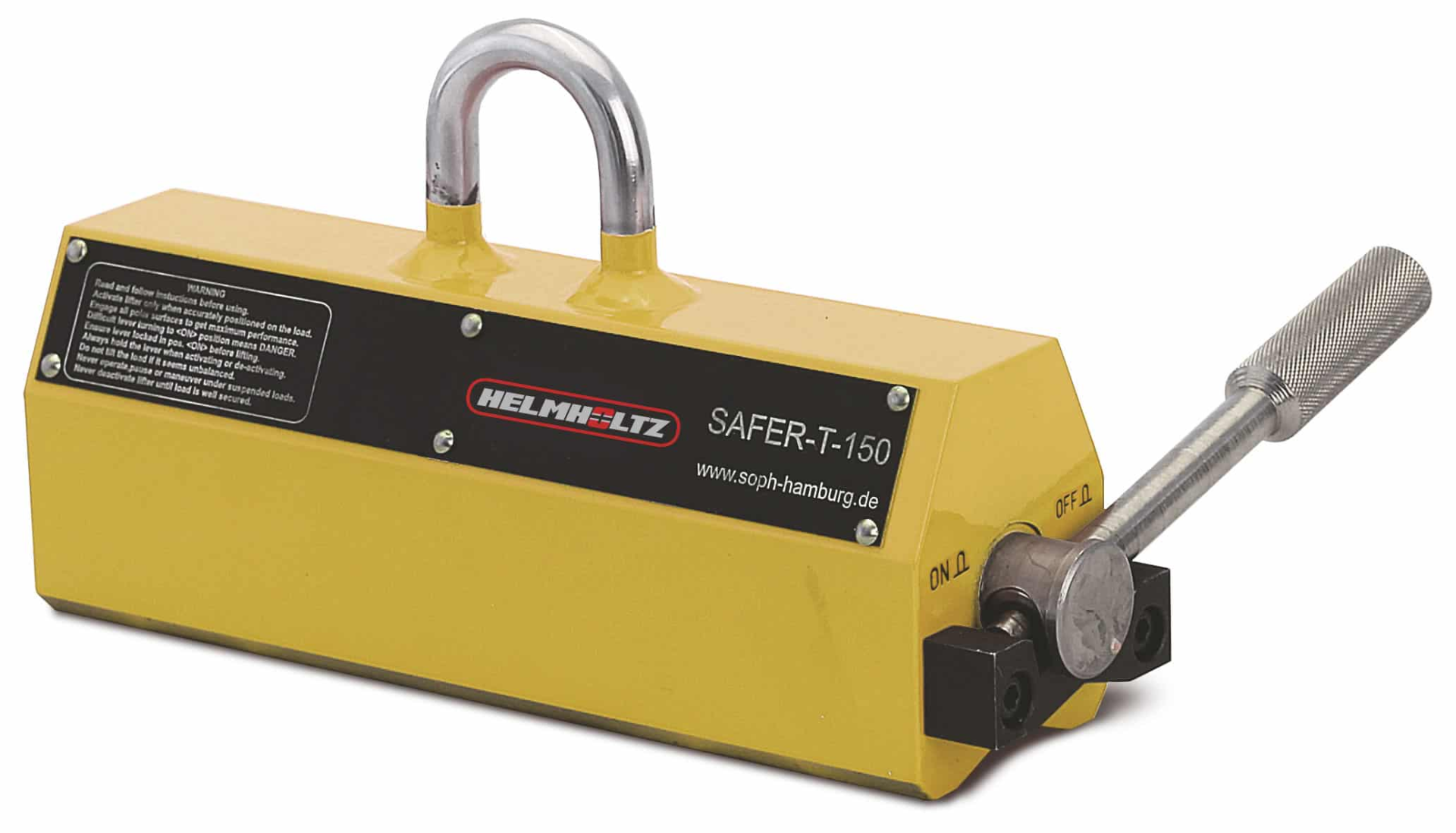

Helmholtz Thin Plate Lifter 550 lbs Capacity 0.47″ Min Thickness
Helmholtz Thin Plate Lifter 550 lbs Capacity 0.47″ Min Thickness
SKU: SAFER-T 250
Brand: Helmholtz

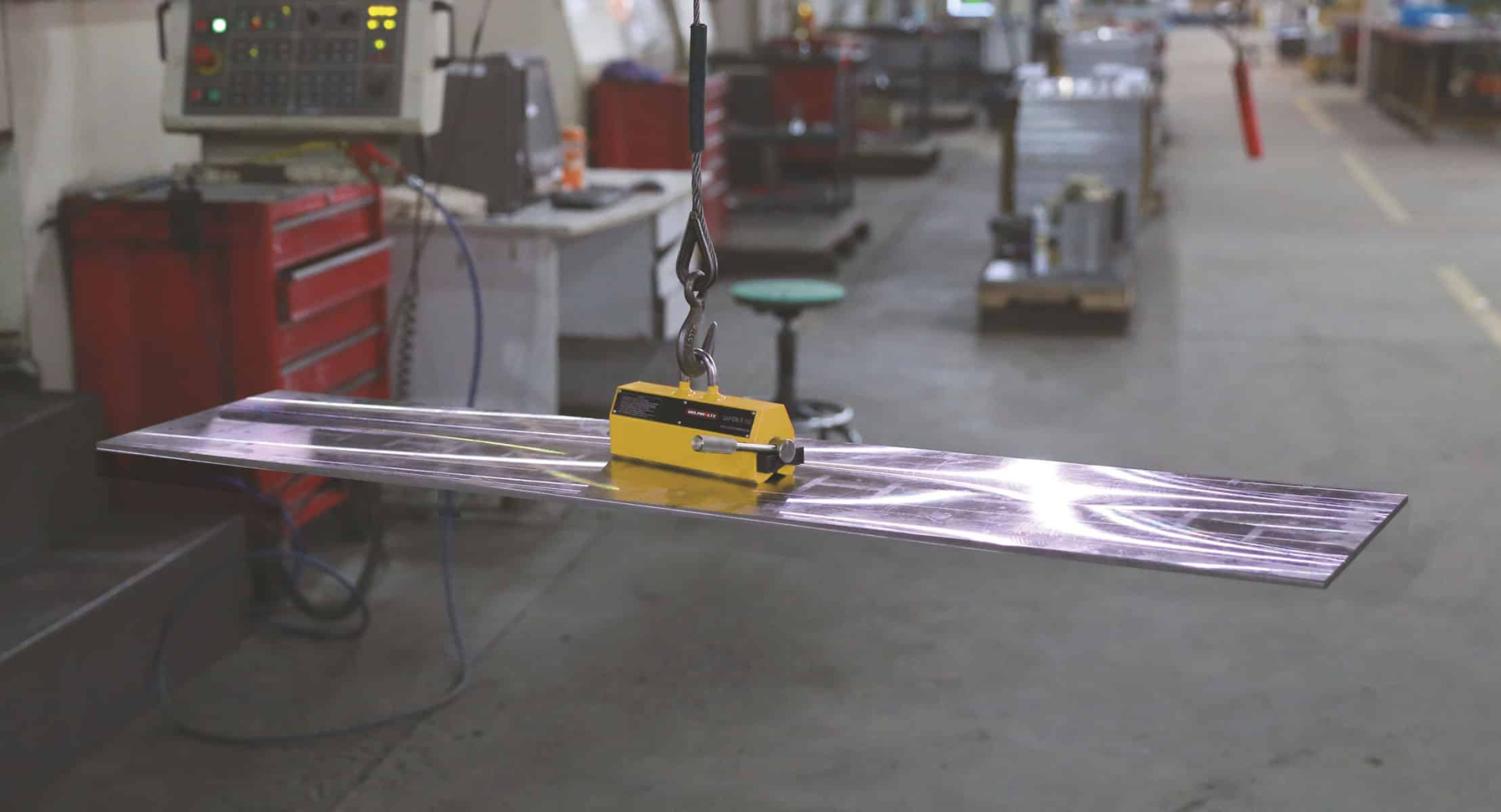

With a lower flux depth than our general purpose lifter For safe handling of thin plates. Safely De-stack thin plates one at a time. Now with SAFER-T, you can handle thin plate easily and safely.
$1,130.00
Additional Information
- Model: SAFER-T
- Size: 250

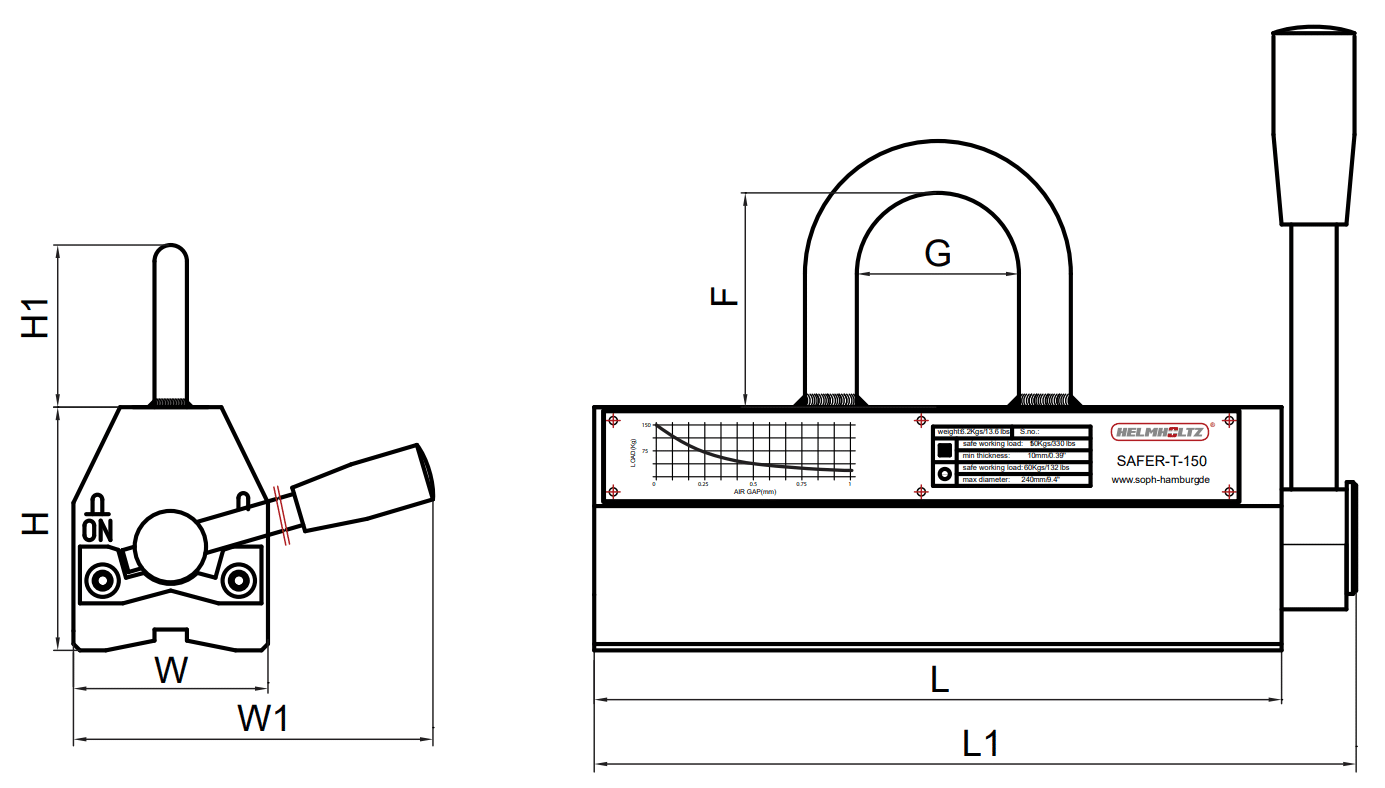

- Width (inch): 3.94
- Length (inch): 9.06
- Height (inch): 4.25
- Dimension H1 (inch): 3.19
- Dimension W1 (inch): 9.06
- Dimension L1 (inch): 10.16
- Dimension G (inch): 1.97
- Dimension F (inch): 2.56
- Net Weight (lb): 62
- Max Flat Load (lb): 550
- Min Load Thickness (inch): 0.47
- Max Load Length (inch): 59.06
- Max Round Load (lb): 220
- Max Round Load Diameter (inch): 7.09
- Special design allows controlled depth of flux
- High power with shallow flux depth, Specifically designed for de-stacking thin plates
- Still good on the thick plates
- “SAFER” test lift function
- Plate down to 10mm(0.39”), bar, pipe, slab, block, mold, dies, castings and crop end material handling
