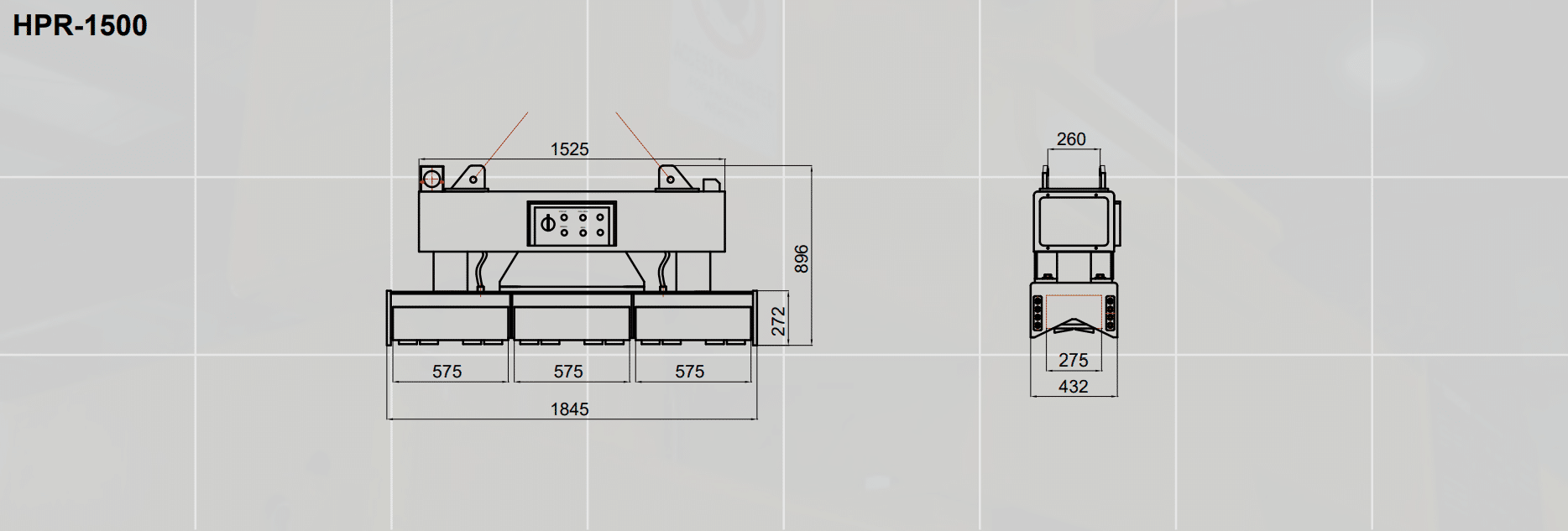

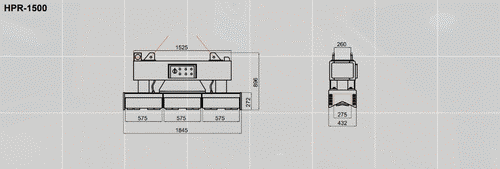

Helmholtz Short Round Stock Lifter 22000 lbs Capacity

SKU: HPR 1500

Brand: Helmholtz

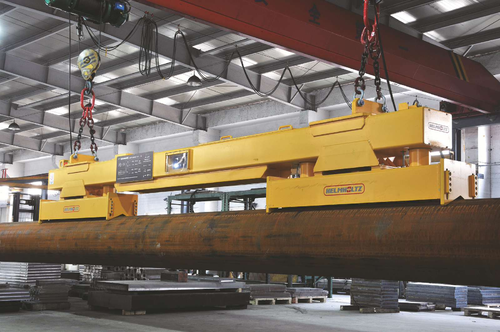

HPR electro-permanent magnetic modules are the ideal answer for handling rounds and tanks with limited air gap.

This product is not available for online purchase as shipping costs must be custom quoted.

Request Quote

Additional Information

Adjustable power level for de-staking plates and slabs as needed

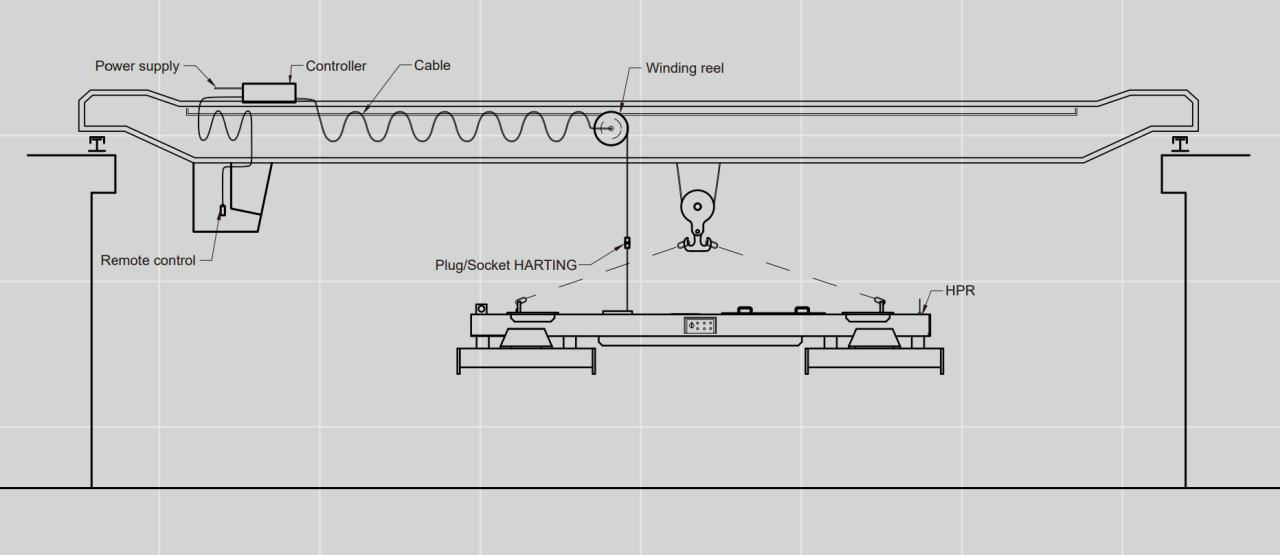

Radio remote
No residual magnetism
Low flux depth
Test lift function insures safe load handling each and every time by insuring a minimum safety factor is guaranteed with each and every lift
Status lights
Electro perm technology saves energy
No moving parts to wear out
On board controls for easy installation

Excellent power to weight ratio
Multi-pole powered magnetic circuit insures no residual magnetism and high performance with a low flux depth
Maximum working load up to 10 Tons
Lifting plate with electro-permanent technology, cannot drop a load due to loss of power
Electro-perm technology cannot drop a load due to loss of power
Test lift sequence prevents unsafe loads due to air-gap, load geomety, or actual load composition from being handled
Lifter status lights to insure the operator always knows the lifter status
Radio remote keeps the operator a safe distance while operating the magnet
Safety switch prevents de-mag unless the load is safely on the ground
CSS sensor to insure controller and magnet are working properly
Safe button for de-mag to insure accidental de-mag cannot be achieved

Steel service centers, Mold and die shop, Fabricators, Heat treating, steel mills, Steel warehouse
