Helmholtz Permanent Lifter 330 lbs Capacity 0.59″ Min Thickness
Helmholtz Permanent Lifter 330 lbs Capacity 0.59″ Min Thickness
SKU: PLN 150
Brand: Helmholtz
Permanent lifting magnet especially for small room space or very high frequency mag and demag
$768.00
Additional Information
- Model: PLN 150
- Safe Working Load (lb): 330

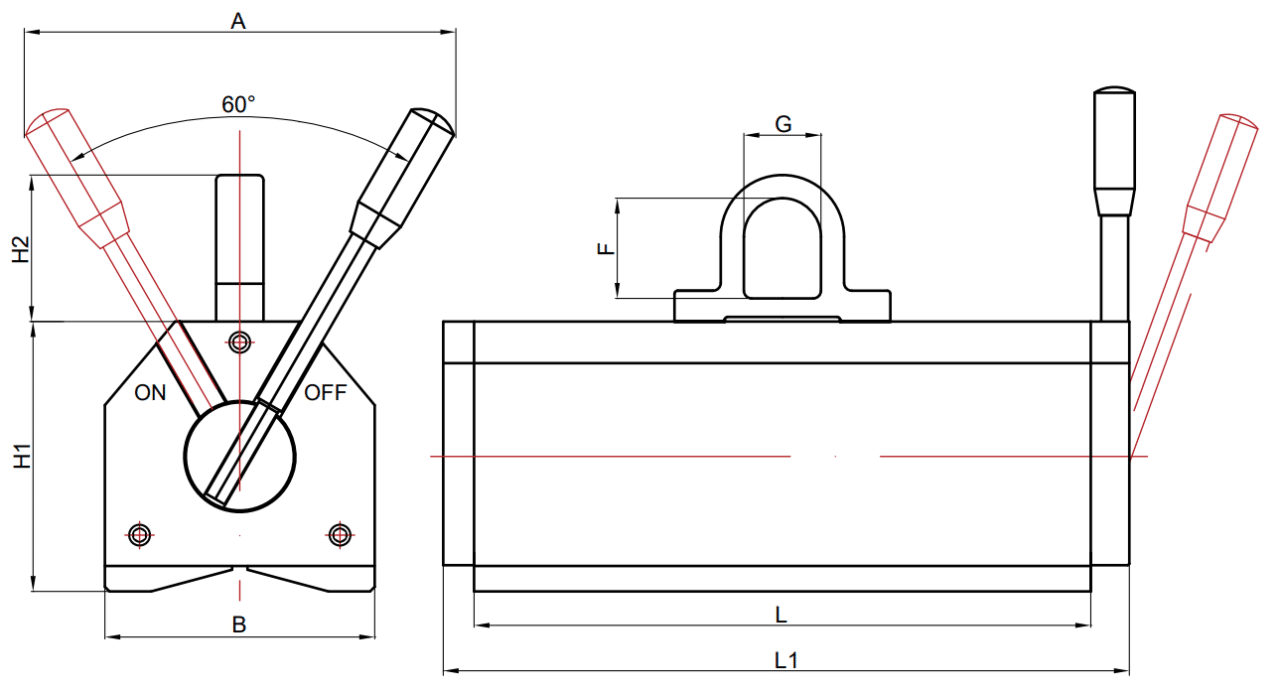

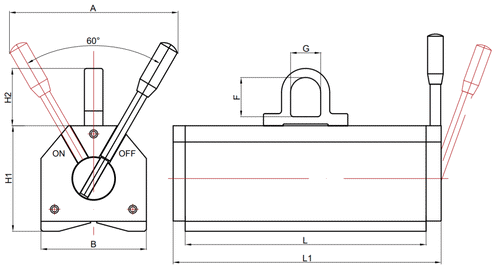

- Dimension A (inch): 7.87
- Dimension L (inch): 5.2
- Dimension L1 (inch): 6.38
- Dimension H1 (inch): 3.54
- Dimension H2 (inch): 2.09
- Dimension F (inch): 1.42
- Dimension G (inch): 1.1
- Net Weight (lb): 17.6
- Max Plate Load (lb): 330
- Min Plate Thickness (inch): 0.59
- Max Plate Length (inch): 39.37
- Max Round Load (lb): 132
- Min Round Load Thickness (inch): 0.24
- Max Round Load Thickness (inch): 5.9

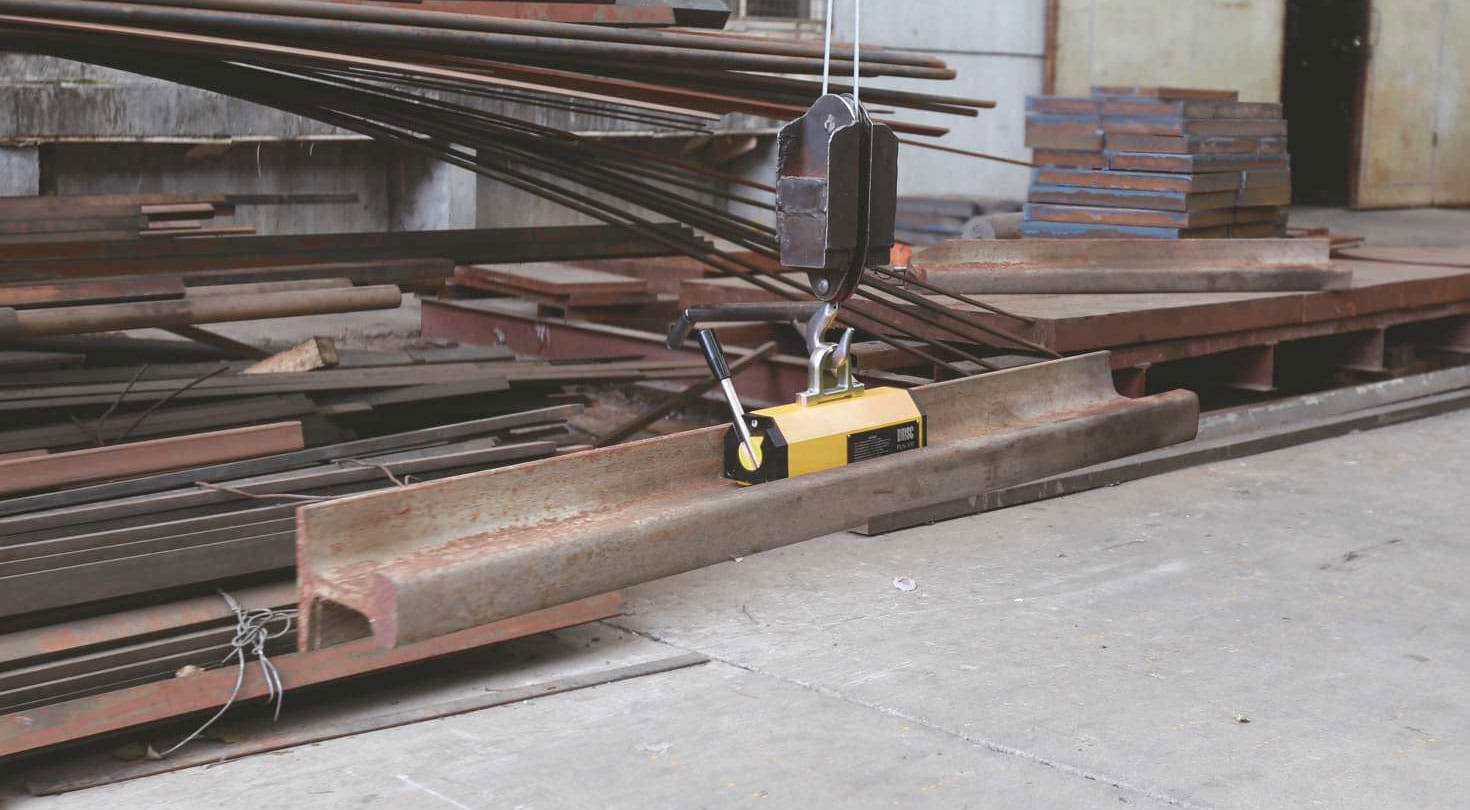

- Suitable to lift plates and rounds
- Strong clamping force while small and compact in size

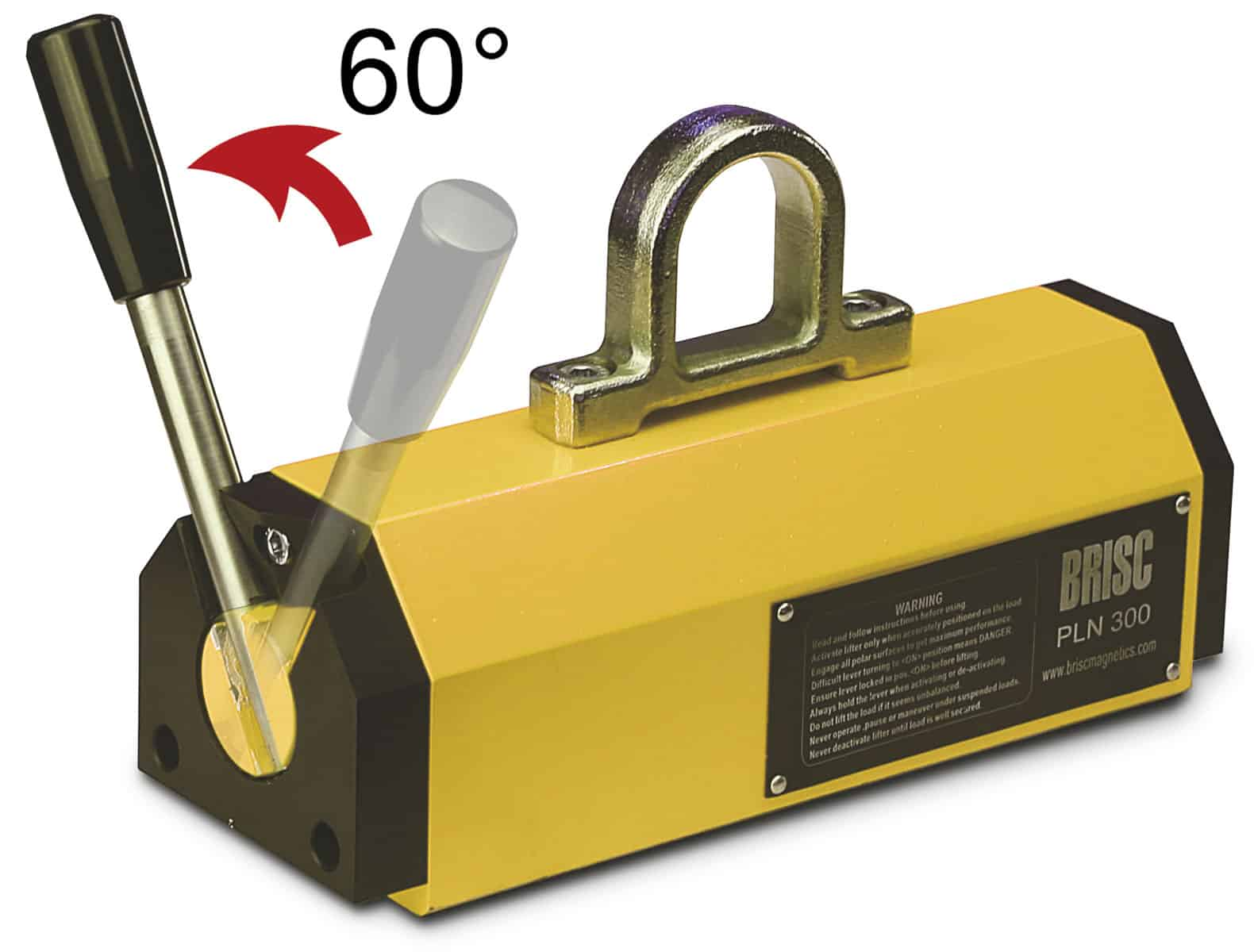

- Mag and demag switch mechanism can be handled easily as travel angle is small
- Switch mechanism can also prevent the accidental demag
- Large clamping area makes stable holding
- Lifting eye is replaceable which can be good for special application
- Suitable to lift plates and rounds
