Helmholtz Magnetic Lifter w/ Controller 8800 lbs Capacity 0.3″ Min Thickness
Helmholtz Magnetic Lifter w/ Controller 8800 lbs Capacity 0.3″ Min Thickness
SKU: HPC 4000
Brand: Helmholtz
Combined magnet and controller in one small package with quick disconnect
$10,662.00
Additional Information
- Model: HPC
- Size: 4000

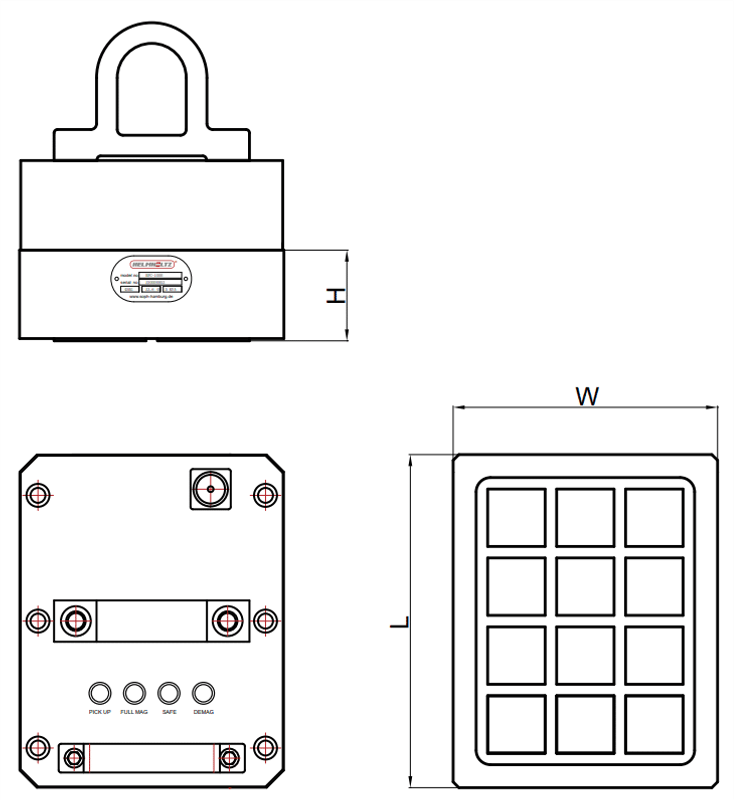

- Length (L) (inch): 33.86
- Width (W) (inch): 9.06
- Height (H) (inch): 3.23
- Net Weight (lb): 286
- Flat Load Max (lb): 8800
- Min Thickness (inch): 0.3
- Flat Size Max (inch): 118×59
- Electro-permanent technology means clamping force remains even with loss of power supply
- Built in controller make it extremely easy for the operator
- Quick connector make it very mobile
- Push button with stautus lights on board the magnetic module
- With reduced power pick up sequence providing safe lifts every time

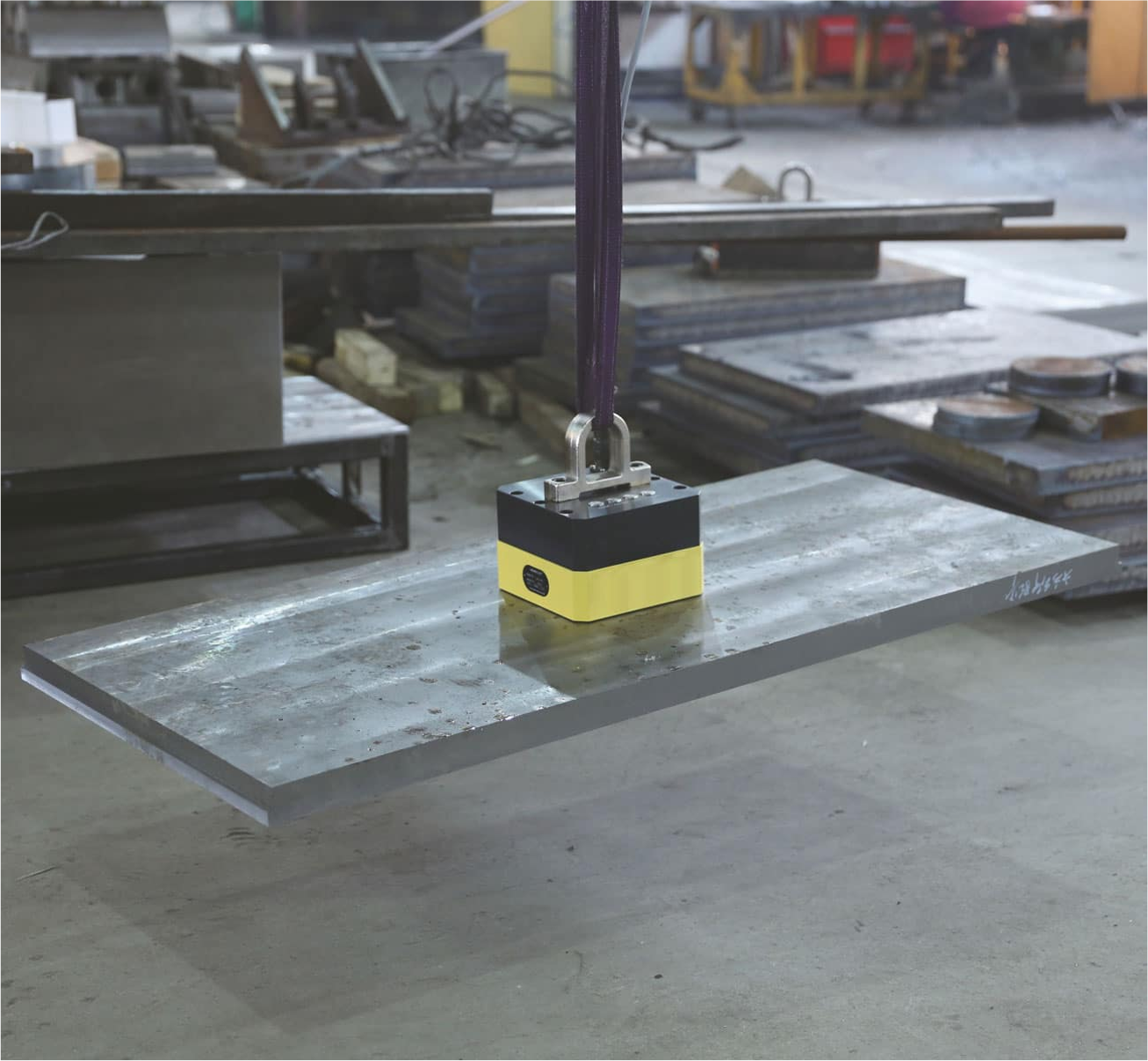

- Handling of plates, blocks, bars, finished parts
