Effecto SWINGCHAM 110, Countersink tools – compliance pendulous, Power (W): 80
Effecto SWINGCHAM 110, Countersink tools – compliance pendulous, Power (W): 80
SKU: SWINGCHAM 110
Brand: Effecto
Countersink tools – compliance pendulous
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Power (W): 80
- Speed (rpm): 500
- Compliance: ± 3.8° (pendulous)
- Compliance Torque (Nm): 4.6
- Fluid Consumption (L/s): 5
- Cutter: 90° / Ø12.4 mm
- Tool Insert Mounting: Ø 8 mm
- Weight (kg): 2.8
- https: //www.youtube.com/watch?v=ogeRBat_JD0

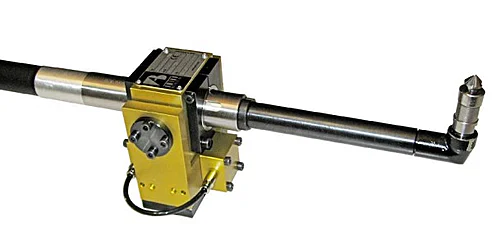

SWINGCHAM countersink tool is being used to countersink holes in metallic as well as nonmetallic parts. It is particularly well suited to work in badly accessible areas. Countersink freely compliable in two directions and the pressure against the part edge can be set from the robot program. The countersink tip of the SWINGCHAM 110 is freely compliable in all directions thanks to its flexible tool mount (flex coupling).
