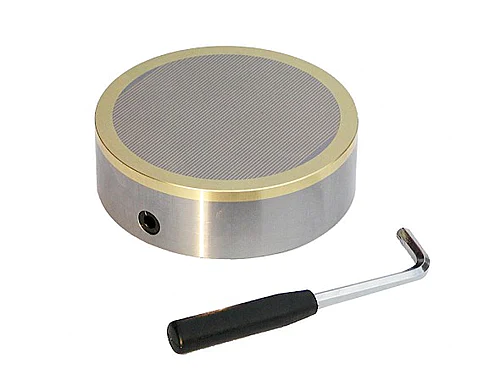

Eclipse Circular Standard Chuck, Standard Pole, Diameter (inch): 10.0

SKU: ECSP255

Brand: Eclipse

View Specs

Circular Standard Chuck, Standard Pole

This product is not available for online purchase as shipping costs must be custom quoted.

Request Quote

Additional Information

Type: Standard Pole

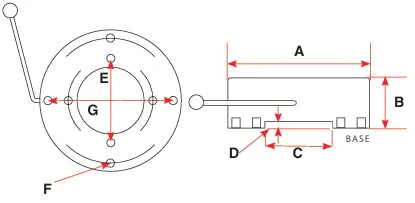

A (inch): 10.0
B (inch): 2.0
C (inch): 3.4
D (inch): 0.3
E (inch): 4.5
F (inch): M10
G (inch): 7.5

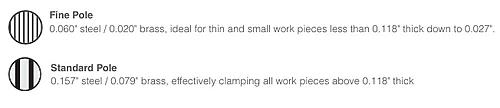

Available in a choice of 2 pole formats.
Both options are manufactured with steel
and brass laminations and integral high performance neodymium magnets in the top plate to enhance the performance.

Both variants produce 80N/cm2 clamping force.
Rear drilled and tapped holes with datum locator.
Removable ergonomic operating handle can be removed once the required power is achieved.

Fast, accurate clamping for grinding and machining components. All metal top plate - high accuracy and long lifespan. High corrosion resistance - resists damage from coolants. Chrome-plated side and end stops - accurate location. Base plate - for fixing to a machine bed (clamps supplied). Simple on-off switching - removable operating handle. Fail-safe permanent magnetic technology
