Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 1000, SolidAngled Arm, Flanged Base, Steel
Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 1000, SolidAngled Arm, Flanged Base, Steel
SKU: CL-800-VTC
Brand: Carr Lane
Vertical Toggle Clamp
$36.44
Additional Information
- Clamping Force (lbf): 1000
- Arm Type: SolidAngled Arm
- Base Type: Flanged Base
- Style: Steel
- Material: 1008, 1010, and/or 1018 Steel (Clamp Body),
- Finish: Zinc plated clear chromate

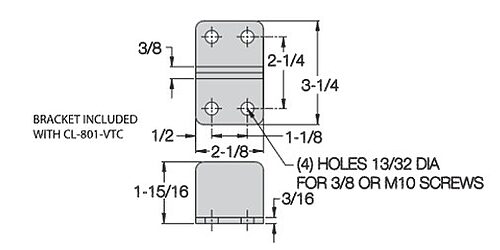

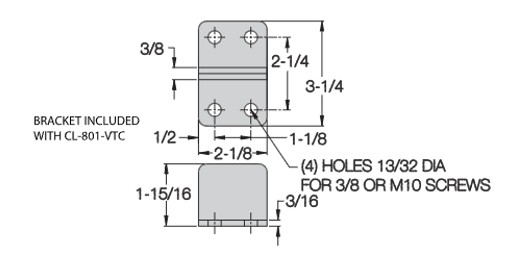

- Accepts any 5/8-11 or M16 spindle. Supplied with CL-511000-BR weld-on bolt retainer. Straight-base version supplied with weld-on base bracket.

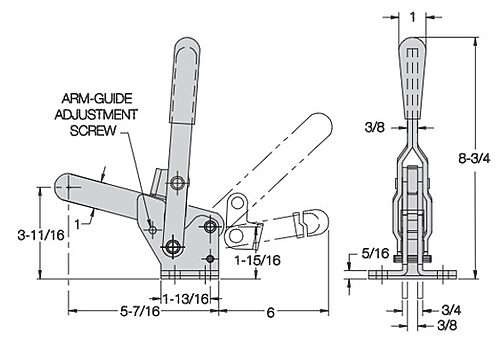

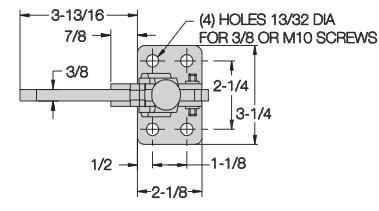

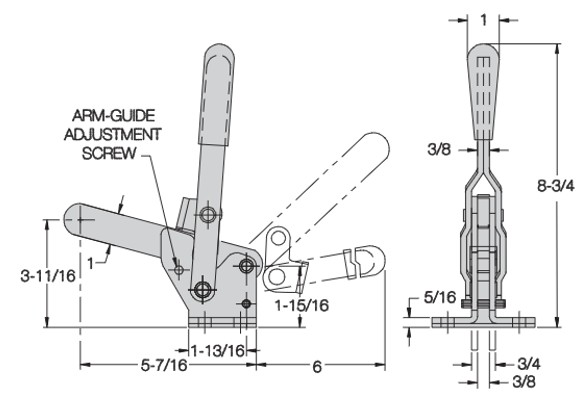

Large clamp with an angled arm for increased clearance underneath the arm. Also useful for applying clamping force at an angle. Arm opens 126° while handle moves 76°. Solid arm provides fixed spindle location using a weld-on bolt retainer. Straight-base version has a longer handle and includes a weld-on base bracket to allow mounting at any angle. 1000 lbs holding capacity.
