Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 1000, Open Arm, Straight Base, Steel
Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 1000, Open Arm, Straight Base, Steel
SKU: CL-851-VTC
Brand: Carr Lane
Vertical Toggle Clamp
$59.02
Additional Information
- Clamping Force (lbf): 1000
- Arm Type: Open Arm
- Base Type: Straight Base
- Style: Steel
- Material: 1008, 1010, and/or 1018 Steel (Clamp Body),
- Finish: Zinc plated clear chromate

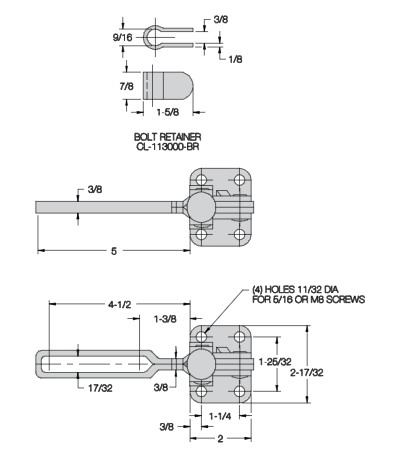

- Accepts any 1/2-13 or M12 spindle. Open-arm version supplied with (2) CL-1213-TW flanged washers. Solid-arm version supplied with CL-113000-BR weld-on bolt retainer.

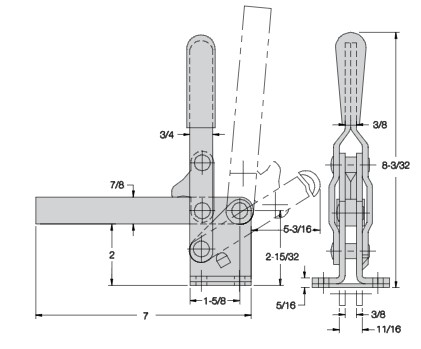

Large, heavy-duty wide-opening clamp, available in several configurations. Arm opens 120° while handle moves 67°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Choice of flanged base or straight base. Optionally available with our new safety-lock feature, and in an air-powered version (see Related Products below). 1000 lbs holding capacity.
