Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 100, Open Arm, Flanged Base, Steel, T Handle
Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 100, Open Arm, Flanged Base, Steel, T Handle
SKU: CL-152-VTC
Brand: Carr Lane
Vertical Toggle Clamp
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Clamping Force (lbf): 100
- Arm Type: Open Arm
- Base Type: Flanged Base
- Style: Steel
- Material: 1008, 1010, and/or 1018 Steel (Clamp Body),
- Finish: Zinc plated clear chromate

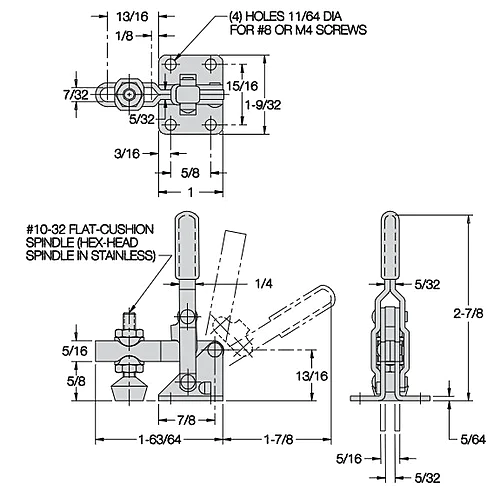

- Steel clamps are supplied with #10-32 flat-cushion spindle CL-316112-FC and (2) CL-3166-TW flanged washers. Stainless steel clamps are supplied with stainless hex-head spindle CL-316100-SA-S and (2) CL-3166-TW-S stainless flanged washers. For alternative clamping spindles, or to order an optional bracket for 90° mounting, Contact Us.
Smallest wide-opening hold-down toggle clamp available. Arm opens 100° while handle moves 56°. Open arm provides adjustable spindle location. Choice of flanged base or straight base. Available in steel or stainless steel. Also available in an air-powered version (see Related Products below). 100 lbs holding capacity.
