Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 100, High Open Arm, Flanged Base, Stainless Steel
Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 100, High Open Arm, Flanged Base, Stainless Steel
SKU: CL-51-TC
Brand: Carr Lane
Horizontal Toggle Clamp
$33.37
Additional Information
- Clamping Force (lbf): 100
- Arm Type: High Open Arm
- Base Type: Flanged Base
- Style: Stainless Steel
- Material: 300-Series Stainless (Clamp Body),
- Finish: N/A

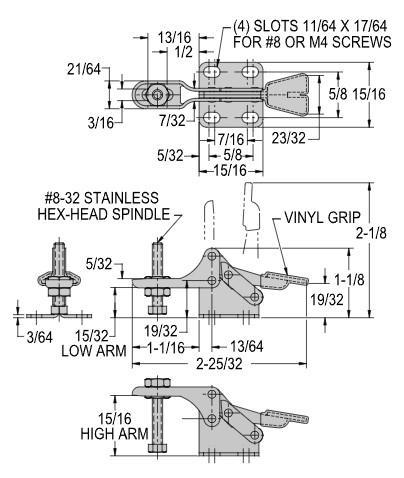

- Supplied with #8-32 stainless hex-head spindle CL-832203-SA-S. For alternative clamping spindles, Contact Us.
Miniature stainless steel clamps, perfect for electronics fixturing and other light-duty applications. Arm opens 90° while handle moves 90°. Open arm provides adjustable spindle location (choice of low or high arm). Choice of flanged base or straight base. 100 lbs holding capacity.
