Carr Lane Bushing for Bullet-Nose Dowel, 1/4 Inch Inner Diameter
Carr Lane Bushing for Bullet-Nose Dowel, 1/4 Inch Inner Diameter
SKU: CL-B-1000
Brand: Carr Lane
Bushing for Bullet-Nose Dowels
$7.17
Additional Information

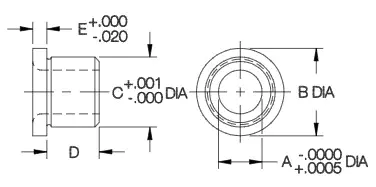

- A DIA NOMINAL (inch): 1/4
- A DIA ACTUAL (inch): .2501
- B DIA (inch): .625
- C DIA NOMINAL (inch): 1/2
- C DIA ACTUAL (inch): .5002
- D (inch): 3/8
- E (inch): .100
- Material: 1144 Steel
- Heat Treated Rc 50-55
- Finish: Black Oxide
- DFARS Compliant
- RoHS Compliant
Precision bushing used with a Bullet-Nose Dowel to align two pieces of a fixture. The bushing's ID and OD are concentric to within .0003" TIR. Available for pin diameters 1/4, 5/16, 3/8, and 1/2" (6, 8, 10, and 12mm in metric). Made in USA.
