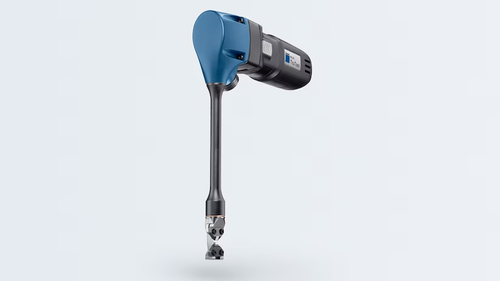

Trumpf Profile Nibbler (Long Tool) 2.0 mm Max Sheet Thickness
Trumpf Profile Nibbler (Long Tool) 2.0 mm Max Sheet Thickness
SKU: TruTool PN 201 Corded
Brand: Trumpf
TruTool PN 201
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Maximum sheet thicknesses:
- Maximum sheet thickness steel 400 N/mm²: 2 mm
- Maximum sheet thickness steel 600 N/mm²: 1.5 mm
- Maximum sheet thickness steel 800 N/mm²: 1 mm
- Maximum sheet thickness aluminium up to 250 N/mm²: 3 mm
- Radii:
- Smallest radius: 50 mm
- General:
- Working speed (max.): 2.2 m/min
- Starting hole diameter: 24 mm
- Nominal Power Consumption: 550 W

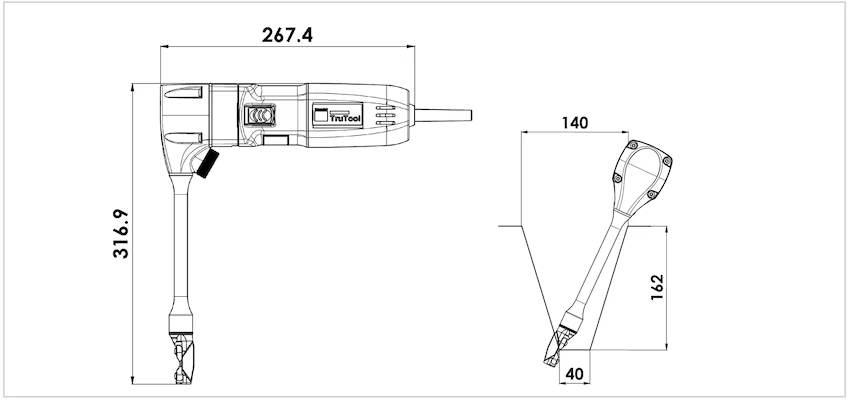

- Dimensions:
- Length: 267 mm
- Height: 317 mm
- Weight: 2 kg

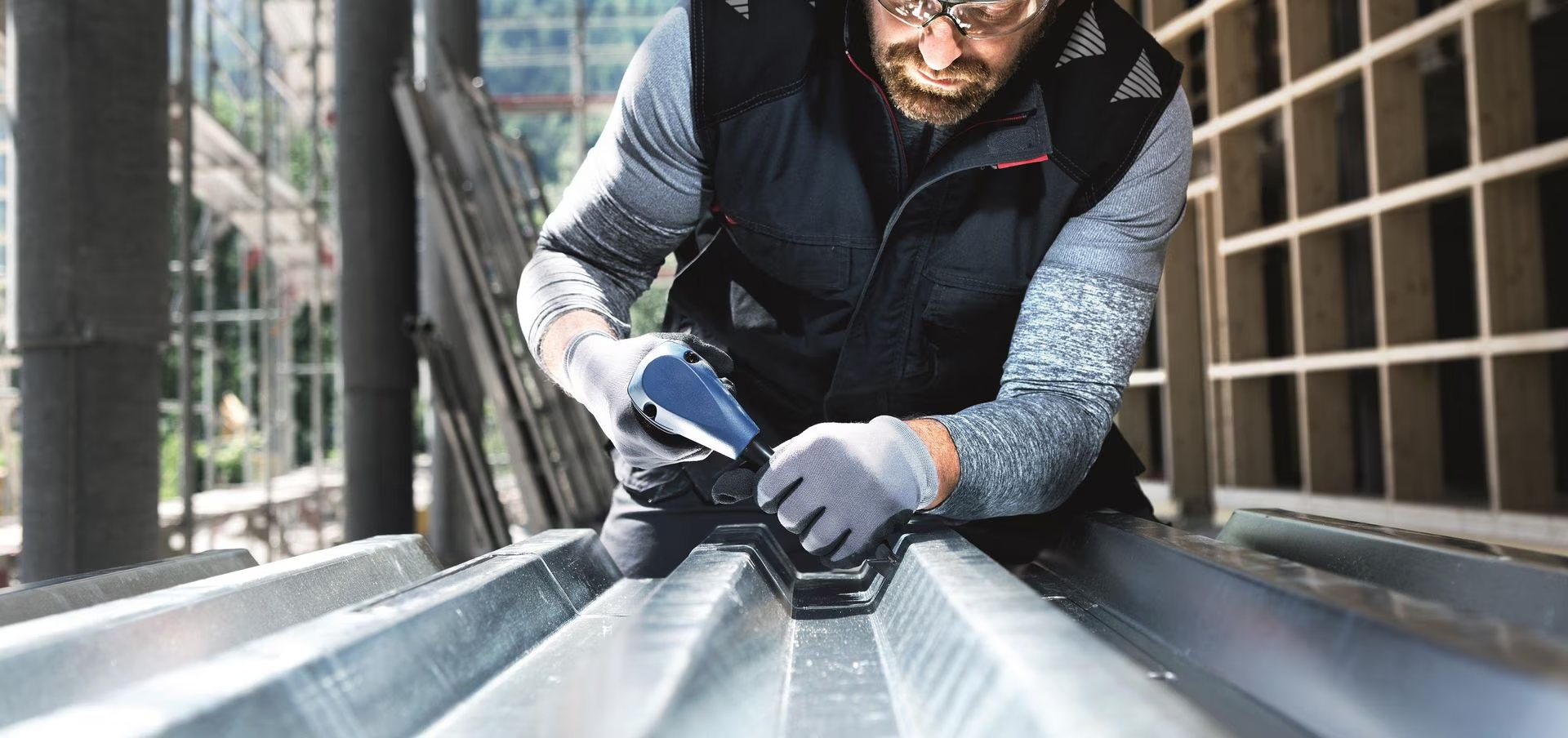

- Trapezoidal sheet: For cutting profile depths of up to 3.4 inches deep and 5.2 inches / 1.57 inches wide. For straight and diagonal cuts.
- Profiles: For cutting C-L-U roof profiles
The profile nibbler with long tool is the ideal choice if you process profile depths of up to 6.4 in. The processing direction can be set in 8 cutting directions
