Trumpf Profile Nibbler 2.0 mm Max Sheet Thickness
Trumpf Profile Nibbler 2.0 mm Max Sheet Thickness
SKU: TruTool PN 200 Corded
Brand: Trumpf
TruTool PN 200
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Maximum sheet thicknesses:
- Maximum sheet thickness steel 400 N/mm²: 2 mm
- Maximum sheet thickness steel 600 N/mm²: 1.5 mm
- Maximum sheet thickness steel 800 N/mm²: 1 mm
- Maximum sheet thickness aluminium up to 250 N/mm²: 3 mm
- Radii:
- Smallest radius: 50 mm
- General:
- Working speed (max.): 2.1 m/min
- Starting hole diameter: 24 mm
- Nominal Power Consumption: 550 W

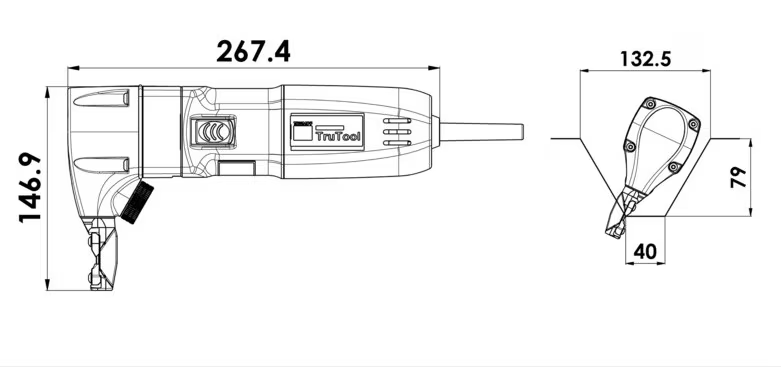

- Dimensions:
- Length: 267 mm
- Height: 147 mm
- Weight: 1.8 kg
- Trapezoidal sheet: For cutting profile depths of up to 3.4 inches deep and 5.2 inches / 1.57 inches wide. For straight and diagonal cuts.
- Profiles: For cutting C-L-U roof profiles
- Corrugated Sheet: For trimming to length and cutting. For diagonal cuts, interior cutouts, and radial cuts.
The profiling nibbler with short tool is designed for profile depths of up to 3.35 in. You can adjust the direction of processing in 8 cutting directions.
