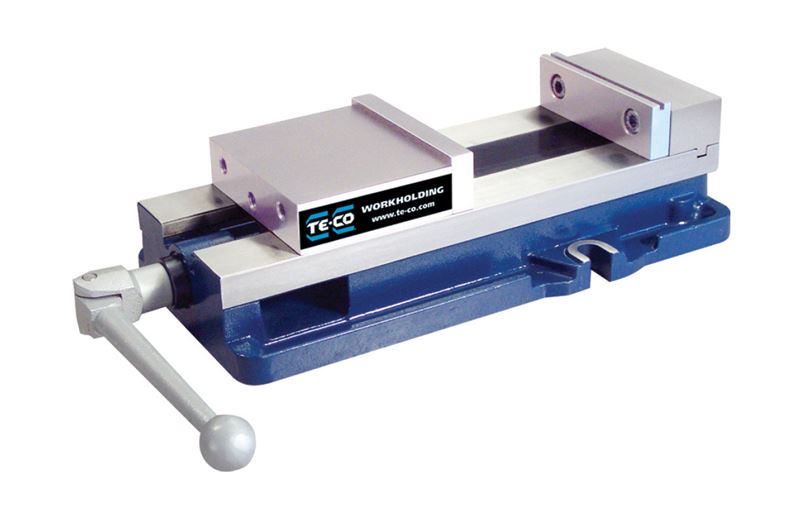

TE-CO 4″ Single Station Vise, Clamping Force (lb): 7000
TE-CO 4″ Single Station Vise, Clamping Force (lb): 7000
SKU: PWS-4600
Brand: TE-CO
4″ Single Station Vise
$656.00
Additional Information
- Type: Single Station
- Style: Machinable Jaws
- Clamping Force (lb): 7000
- Jaw Opening (inch): 6.00
- Jaw Width (inch): 4.00
- Total Length (inch): 14.22
- Total Width (inch): 6.30
- Total Height (inch): 3.63
- Material: Ductile Iron
- Weight (lb): 33
- Powder coated paint resists flaking and peeling
- 80,000psi ductile iron body with increased nickel content for improved corrosion resistance
- Hardened vise bed and jaw plates
- Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque
- Up to 7,000 lbs of clamping force
- Repeatability within .001″ (0.025mm)
- Outside rails of body are machined within 0.0005″ (.013mm) square to jaw
- Bed height matched to size 2.250″ +/- 0.0005″
- Footprint and distance from the keyway to stationary jaw meets industry standard
