ROEMHELD Threaded-Body Cylinder, Swivel Plunger, 5530 lb Clamping Force
ROEMHELD Threaded-Body Cylinder, Swivel Plunger, 5530 lb Clamping Force
SKU: CLR-310-TB
Brand: ROEMHELD
Threaded-Body Cylinders – Swivel Plunger, B1.460
$283.55
Additional Information
- Maximum Clamping Force (lb): 5530
- E Body Thread: 1-1/2″-16
- Piston Dia (mm): 25
- Clamping Stroke (mm): 16

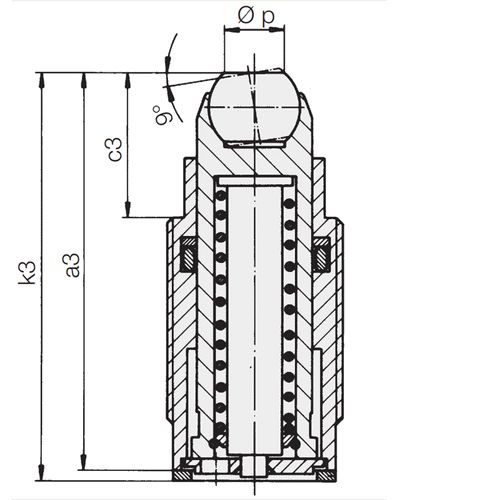

- A3 (mm): 71
- B (mm): 11
- C3 (mm): 26.5
- K3 (mm): 72.5
- P DIA (mm): 10.5
- SW1: 1-1/4
- Seating Torque (ft-lb): 59
- Weight (lb): 0.8
- Material: Steel

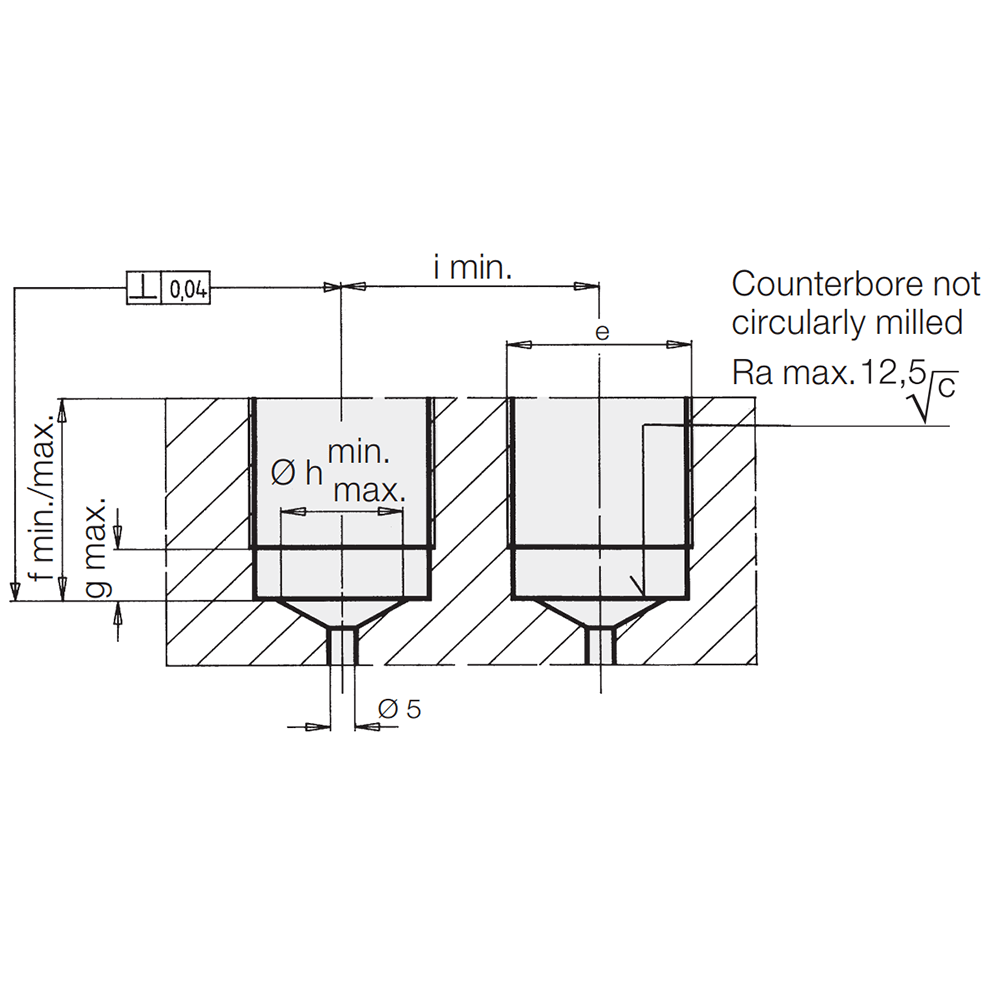

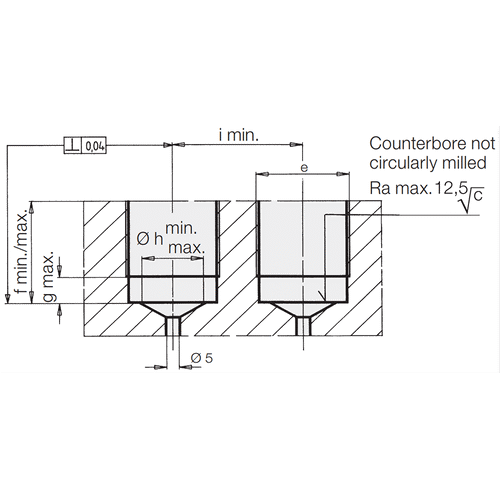

Versatile push clamps that provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted. Clamps can be screwed all the way down to their hex flats, or installed at partial depth. Long plunger guide ensures excellent reliability and durability. Available in five body diameters, with inch or metric threads, with a choice of swivel plunger (shown here), radius plunger, or tapped plunger. Clamping force at 7250 psi.
