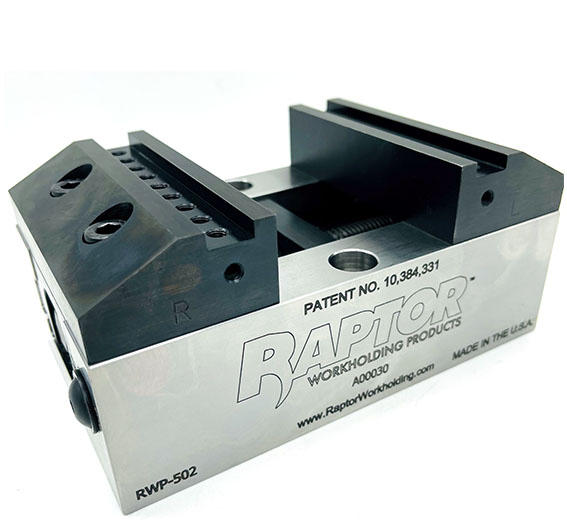

Raptor Self Center Vise 100mm Jaw Face Width
Raptor Self Center Vise 100mm Jaw Face Width
SKU: RWP-502
Brand: Raptor
100mm Wide – Self Centering Vise
This product is not available for online purchase as shipping costs must be custom quoted.
Request Quote$2,313.00
Additional Information

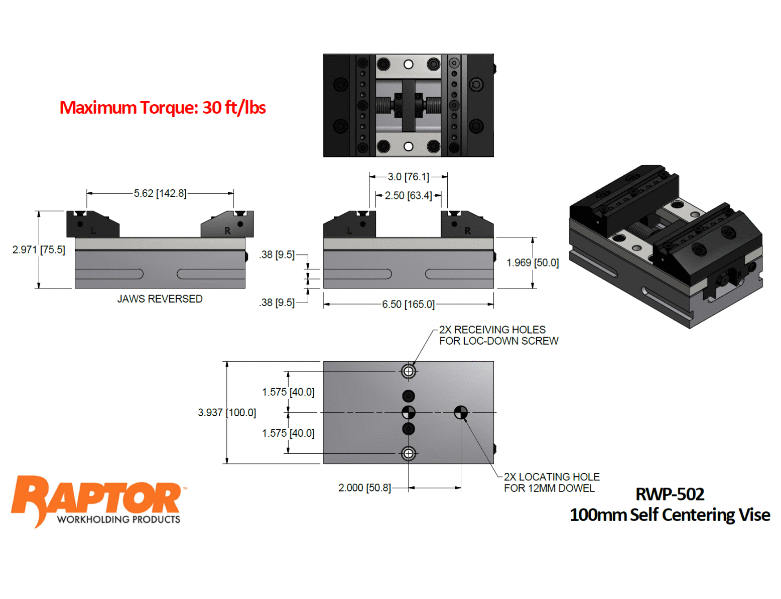

- Base Dimensions (L x W inch): 6.49 x 3.937
- Bed Height (inch): 1.96
- Jaw Opening (inch): 0 – 2.5
- Jaws Reversed (inch): 5.62
- Maximum Allowed Torque (ft/lbs): 30
- Clamping Force @ Max Torque: 4000 lbs
- Centering Tolerance: +/- 0.0005″
- Piranha Zero-Point Adaptable: Yes
- All steel construction
- Automatically positions workpiece in center of vise. Centering tolerance is +/-0.0005″ (+/-0.013mm) and repeatability is 0.001″
- Jaws adjust from either end of vise
- Jaw clamping range is 0-2.500″as shown and 2.500″-5.620″ with jaws reversed
- Insert options available for a variety of holding applications: Dovetail, Serrated, Parallels, TalonGrip™ , Talon Stop, & Soft Jaws. (all sold separately)
- Utilizes two dowel pins: one for centering and one for locating
- Jaw accessory screws included – (6) FHCS.
