Mitee Bite Uniforce Clamp, Metric Holding Force (lbs): 1350 Max Torque (ft-lbs): 1.50

Model: 375

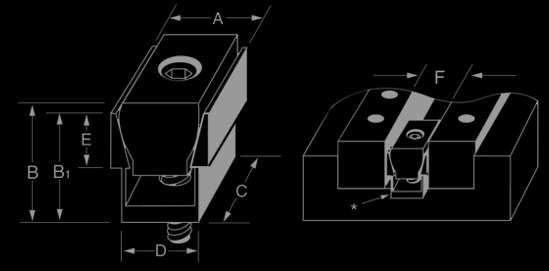

Dim A (inch): 9.1
Dim B (inch): 9.7
Dim B1 (inch): 9.5
Dim C (inch):
Dim D (inch): 7.9
Dim E (inch): 4.7
Dim F (inch): 9.5
Max Torque (ft-lbs): 1.50
Holding Force (lbs): 1350
Clamps Per Package: 6
Thread Size: M2.5
Max Spread (inch): 10.0
Key Size: 2
Replacement Steel Channel: 60307 + 60207

Increases production
Minimizes tool changes
Holds two parts with equilateral clamping action
Ideal for clamping flat or round work pieces
Reduces wasted space
Easily mated to hydraulic pull cylinders
Ideal for pallet changers
Show with our Locating Rails

The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. – Increases production. – Minimizes tool changes. – Holds two parts with equilateral clamping action. – Ideal for clamping flat or round work pieces. – Reduces wasted space. – Easily mated to hydraulic pull cylinders. – Ideal for pallet changers. – Show with our Locating Rails
