Mitee Bite Uniforce Clamp, Inch Holding Force (lbs): 2500 Max Torque (ft-lbs): 19.0

Model: 1000

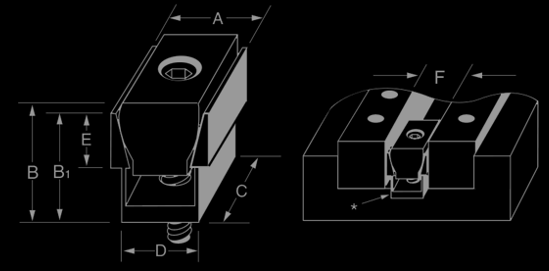

Dim A (inch): 0.980
Dim B (inch): 1.02
Dim B1 (inch): 1.000
Dim C (inch): 1.250
Dim D (inch): 0.820
Dim E (inch): 0.500
Dim F (inch): 1.000
Max Torque (ft-lbs): 19.0
Holding Force (lbs): 2500
Clamps Per Package: 4
Thread Size: 5/16-18
Max Spread (inch): 1.050
Key Size: 1/4
Replacement Steel Channel: 60330 + 60230

Increases production
Minimizes tool changes
Holds two parts with equilateral clamping action
Ideal for clamping flat or round work pieces
Reduces wasted space
Easily mated to hydraulic pull cylinders
Ideal for pallet changers
Show with our Locating Rails

The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. – Increases production. – Minimizes tool changes. – Holds two parts with equilateral clamping action. – Ideal for clamping flat or round work pieces. – Reduces wasted space. – Easily mated to hydraulic pull cylinders. – Ideal for pallet changers. – Show with our Locating Rails
