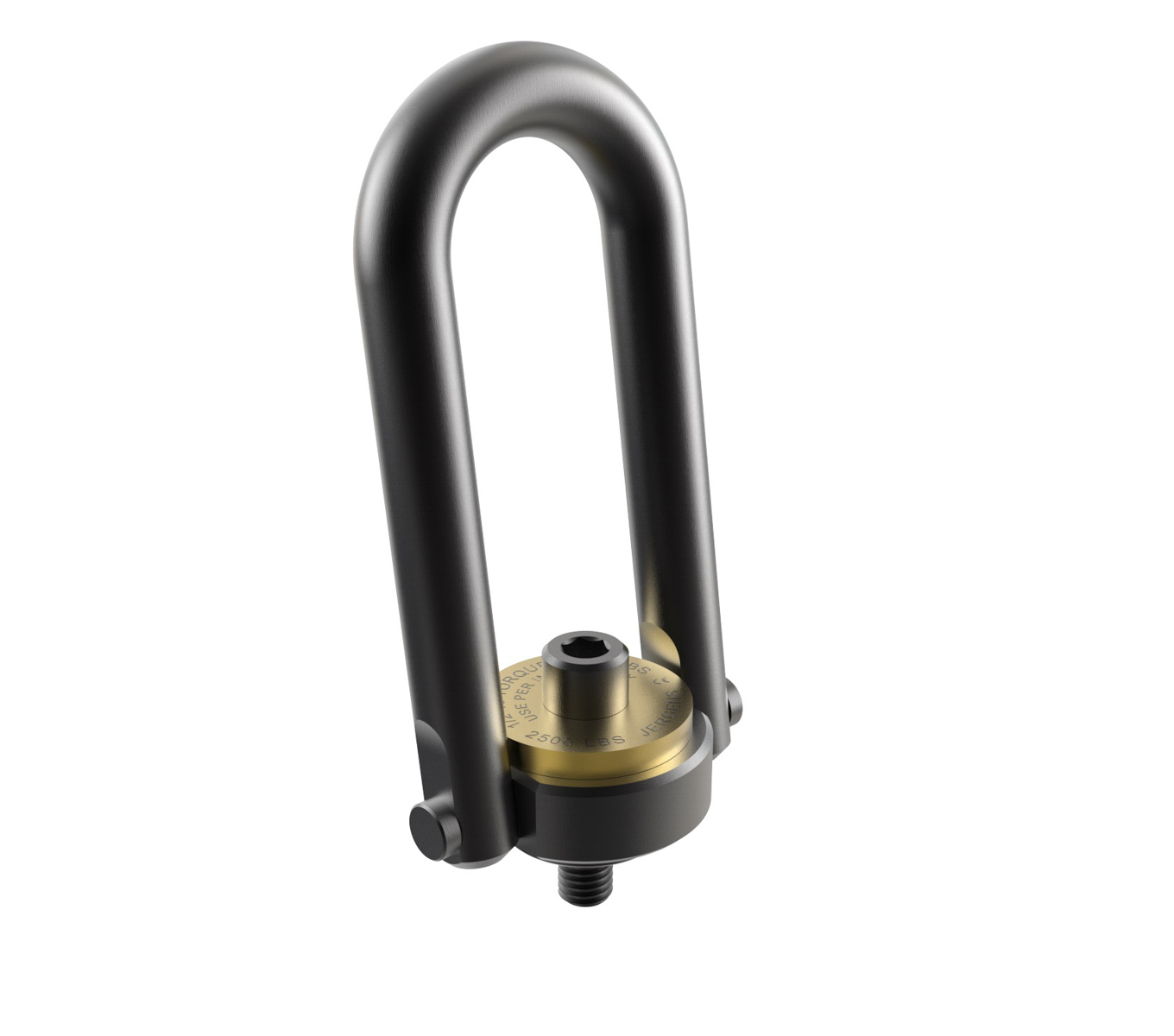

Jergens Traditional Center-Pull Hoist Ring with Long U-Bar, Load Capacity (lb): 4000, Thread Size (inch): 5/8-11, Thread Length (inch): 3/4
Jergens Traditional Center-Pull Hoist Ring with Long U-Bar, Load Capacity (lb): 4000, Thread Size (inch): 5/8-11, Thread Length (inch): 3/4
SKU: 23516
Brand: Jergens
Traditional Center-Pull Hoist Ring with Long U-Bar
$132.90
Additional Information

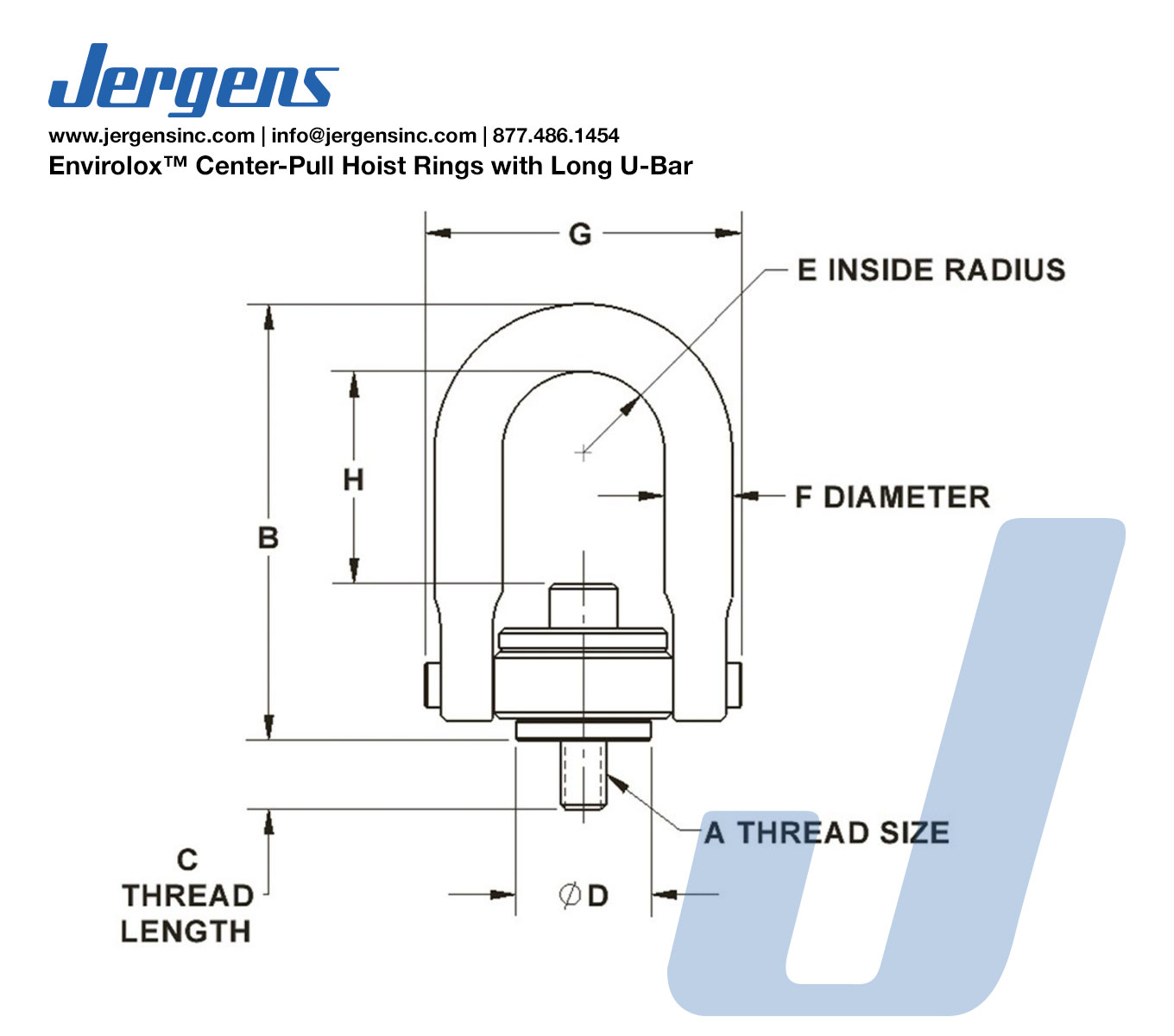

- Thread Size A (inch): 5/8-11
- Load Capacity (lb): 4000
- Thread Length C (inch): 3/4
- B (inch): 6.72
- D (inch): 1.5
- E (inch): 0.88
- F (inch): 0.75
- G (inch): 3.52
- H (inch): 4-3/16
- Torque (ft-lb): 60
- Weight (lb): 2.7
- Bolt Kit Part Number: 23616
- Material & Finish: Alloy Steel, Black Oxide
- Washer Material & Finish:
- Inch: Zinc Plated with Gold Color
- Metric: Zinc Plated with Clear/Blue Conversion Coating
- U-Bars, Bolts, Pins, Bases, Washers, and Bushings are Magnetic Particle Inspected
- Conforms to ASME B30.26 and MIL-STD-209K
Jergens Center-Pull Hoist Rings are made the way they should be: right here in the USA, starting with domestically-produced, certified alloy steel. Choose Jergens and get tough, dependable, American-made quality every time. Stated Load Capacity based on recommended thread torques as shown in the table. It is recommended that the Torque values be used when installing hoist rings.
