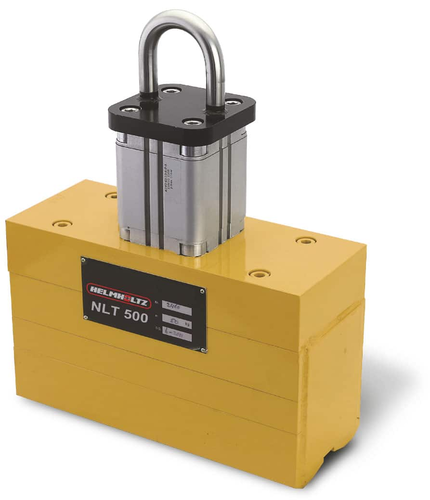

Helmholtz Pneumatic Magnet Lifter 550 lbs Capacity 0.79″ Min Thickness
Helmholtz Pneumatic Magnet Lifter 550 lbs Capacity 0.79″ Min Thickness
SKU: NLT 250
Brand: Helmholtz
$2,132.00
Additional Information
- Model: NLT
- Size: 250

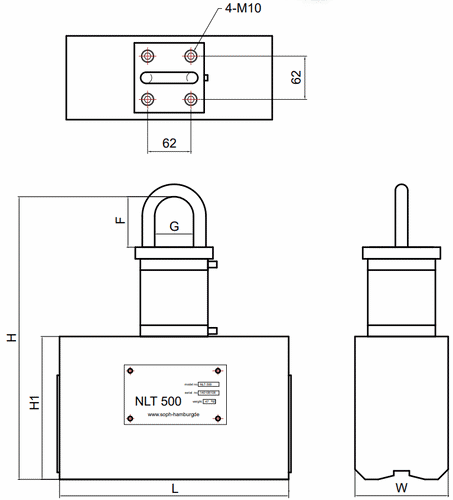

- Width (inch): 4.72
- Length (inch): 5.98
- Height (inch): 7.28
- Dimension G (inch): 1.97
- Dimension F (inch): 2.56
- Net Weight (lb): 55
- Operating Pressure (psi): 80
- Max Flat Load (lb): 550
- Min Load Thickness (inch): 0.79
- Max Load Length (inch): 59.06
- Max Round Load (lb): 220
- Min Round Load Diameter (inch): 2.36
- Max Round Load Diameter (inch): 7.87
- Powerful permanent lifting magnet with pneumatic activation
- V-shaped pole shoes for handling both flat and round components
- Removable lift eye, for automation applications
- Sensor to detect the ON and OFF position available on request

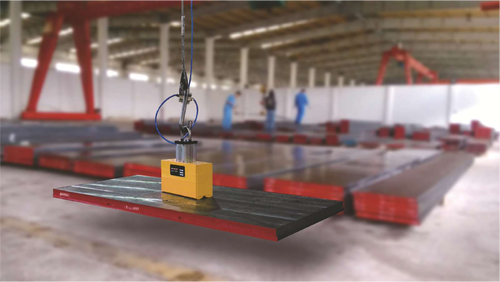

- Handling of flat and round material
- Loading and unloading of machine tools
- End of arm tooling
- Any application where remote activation is required
