Helmholtz Multi-Magnet Lifter 44000 lbs Capacity 0.31″ Min Thickness
Helmholtz Multi-Magnet Lifter 44000 lbs Capacity 0.31″ Min Thickness
SKU: HPM 6/200
Brand: Helmholtz

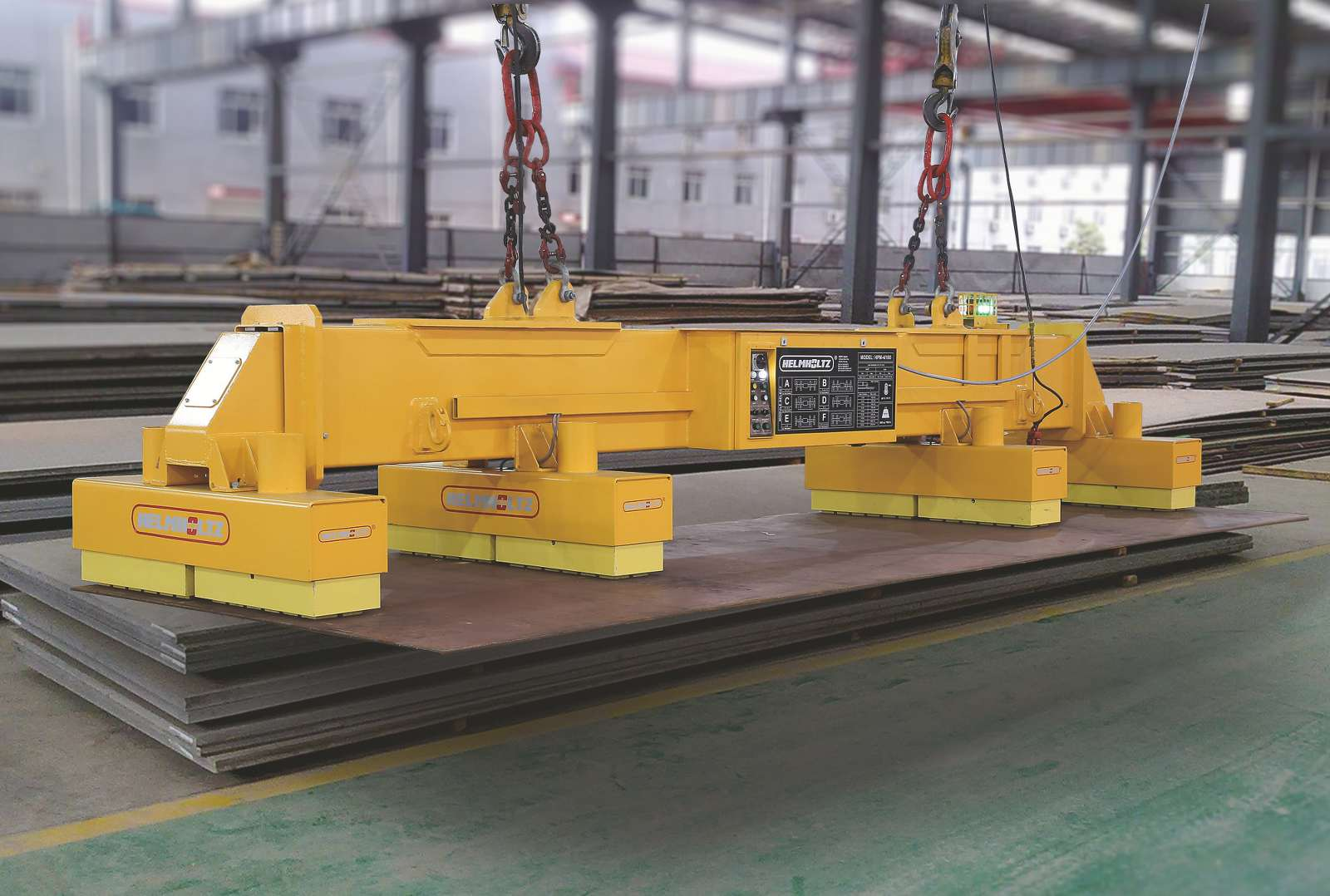

Lifting plate with electro-permanent technology. Six lifting magnets mounted together on a single beam.
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Model: HPM 6/200
- Weight (lb): 10560
- Min Load Thickness (inch): 0.31
- Min Load Length (inch): 110.24
- Max Load Length (inch): 629.92
- Min Load Width (inch): 19.69
- Max Load Width (inch): 137.80
- Max Rated Lifting Capacity (lb): 44000
- Lifting plate with electro-permanent technology, cannot drop a load due to loss of power
- Lift plates without slings chains or straps eliminating any associated damage
- With radio remote control
- HSS (Helmholtz safety system) prevents the De-mag while loads is suspended
- Variable power pick up to de-stack plates safely
- Hydraulic actuated variable size spreader beam increases safety and versatility and efficiency
- Magnetic modules are selectable longitudinally and transversally to suit short or narrow plates
- Test lift function insures safe load handling each and every time by insuring a minimum safety factor is guaranteed with each and every lift.
- Single plate de-stacking capability down to 5mm thick plate.
