Helmholtz Magnetic Lifter for Unfinished Goods 22000 lbs Capacity 1.18″ Min Thickness
Helmholtz Magnetic Lifter for Unfinished Goods 22000 lbs Capacity 1.18″ Min Thickness
SKU: HPS 100
Brand: Helmholtz
HPS permanent electro-magnetic modules are designed for lifting loads with large operational air gaps.
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Model: HPS 100

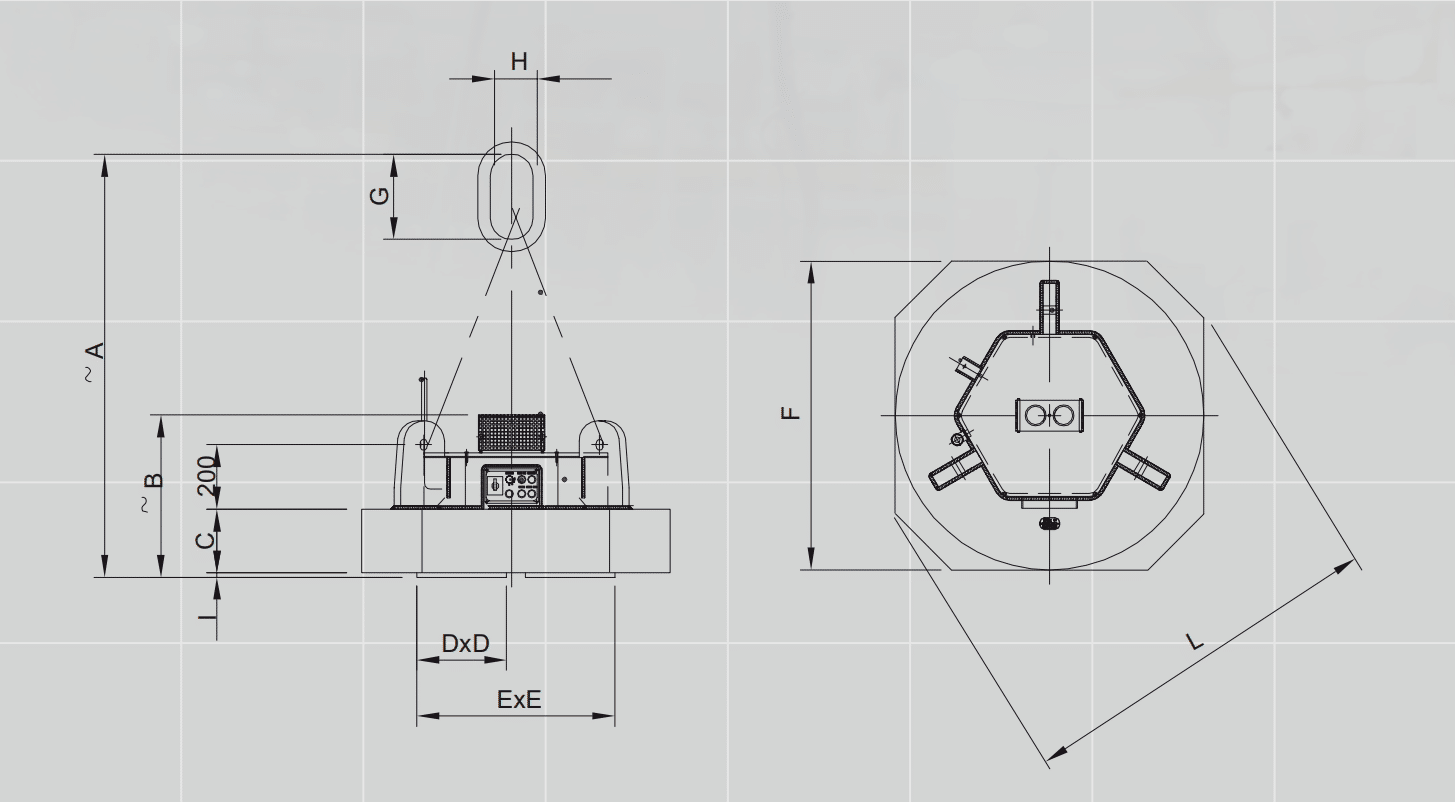

- Dimension A (inch): 71.7
- Dimension B (inch): 25.4
- Dimension C (inch): 11.2
- Dimension D (inch): 10.6
- Dimension E (inch): 24.4
- Dimension F (inch): 33.5
- Dimension G (inch): 9.8
- Dimension H (inch): 5.1
- Dimension I (inch): 0.7
- Dimension L (inch): 40.3
- Weight (lb): 2820
- Min Load Thickness (inch): 1.18
- Max Load Width (inch): 137.80
- Min Load Length (inch): 39.37
- Max Load Length (inch): 240.16
- Max Rated Lifting Capacity (lb): 22000
- 4-pole magnetic circuit for high force concentration
- High magnet strength
- STEEL MILL TOUGH with 3.7” thick monobloc frame
- Electro-perm technology cannot drop a load due to loss of power
- Test lift sequence prevents unsafe loads due to air-gap, load geomety, or actual load composition from being handled
- Lifter status lights to insure the operator always knows the lifter status
- Radio remote keeps the operator a safe distance while operating the magnet
- Safety switch prevents de-mag unless the load is safely on the ground
- CSS sensor to insure controller and magnet are working properly
- Safe button to prevent accidental De-mag
- Steel service centers, Mold and die shop, Fabricators, Heat treating, steel mills, Steel warehouse, Job shops
