Helmholtz General Purpose Lifter 6600 lbs Capacity 2.76″ Min Thickness
Helmholtz General Purpose Lifter 6600 lbs Capacity 2.76″ Min Thickness
SKU: SAFER 3000
Brand: Helmholtz
For lifting ferromagnetic material with patented 1/2 power test position for safer lifting
$4,801.00
Additional Information
- Model: SAFER
- Size: 3000
- Safe Working Load (lb): 6600

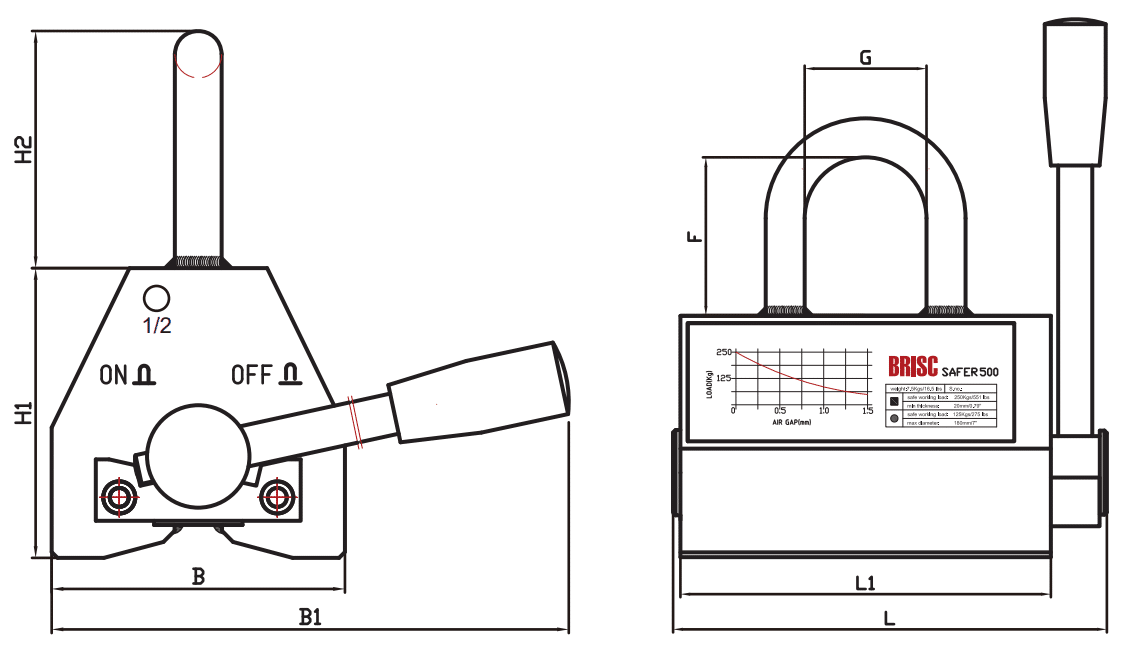

- Dimension B (inch): 7.87
- Dimension B1 (inch): 24.02
- Dimension L (inch): 23.46
- Dimension L1 (inch): 21.65
- Dimension H1 (inch): 8.54
- Dimension H2 (inch): 4.92
- Dimension F (inch): 3.94
- Dimension G (inch): 2.76
- Net Weight (lb): 330
- Max Plate Load (lb): 6600
- Min Plate Load Thickness (inch): 2.76
- Max Plate Load Length (inch): 137.8
- Max Round Load (lb): 2640
- Min Round Load Thickness (inch): 1.77
- Max Round Load Thickness (inch): 15.75
- Max Rounds Load Length (inch): 138
- Compact and light

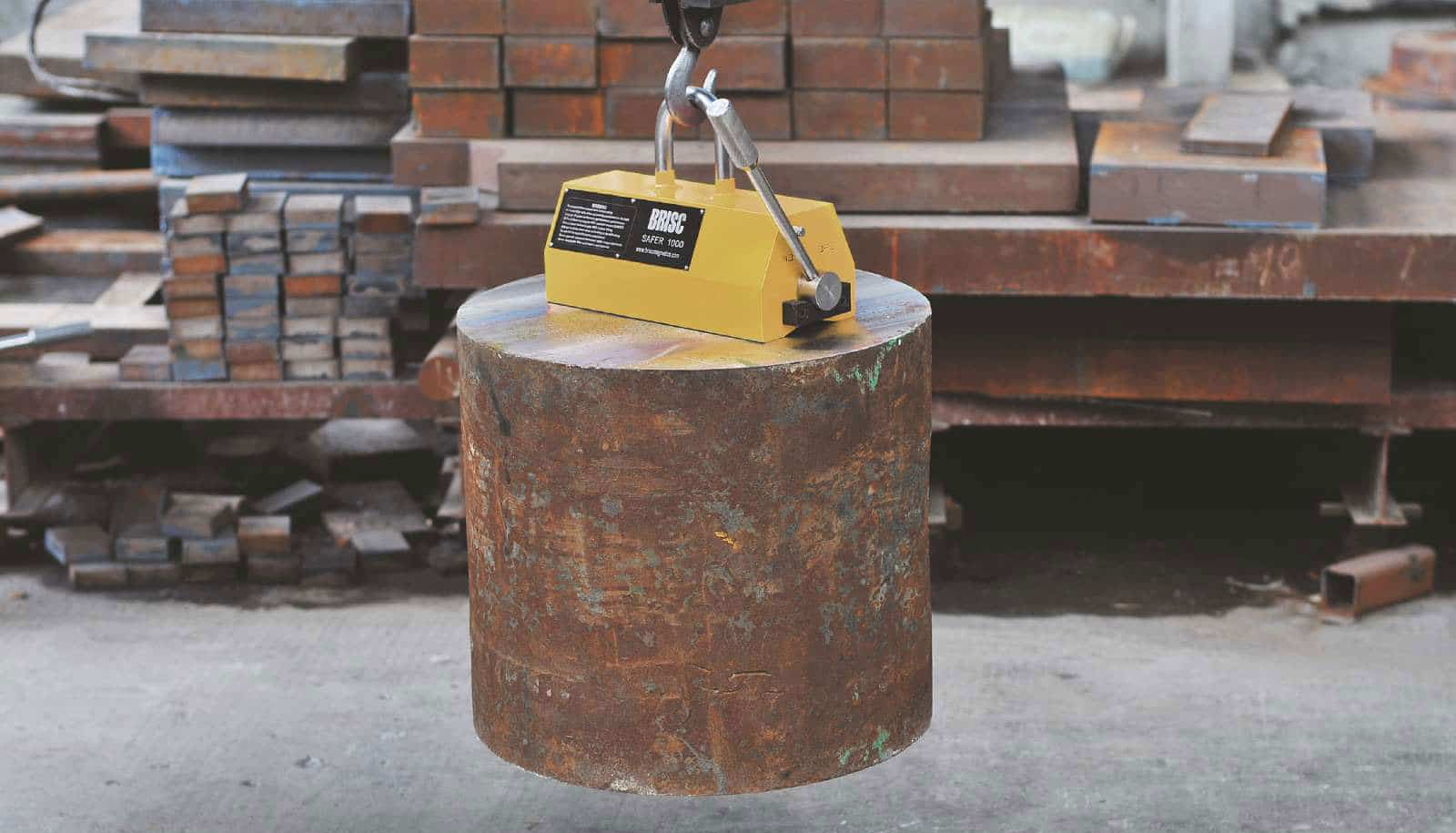

- Suitable for flat and round material
- Maintenance free design
- Safety device prevent accidental deactivation
- Can be switched off by one hand only
- Plate, bar, pipe, slab, block, mold, dies, castings and crop end material handling
