Helmholtz General Purpose Lifter 660 lbs Capacity 0.79″ Min Thickness
Helmholtz General Purpose Lifter 660 lbs Capacity 0.79″ Min Thickness
SKU: SAFER 300
Brand: Helmholtz
For lifting ferromagnetic material with patented 1/2 power test position for safer lifting
$666.00
Additional Information
- Model: SAFER
- Size: 300
- Safe Working Load (lb): 660

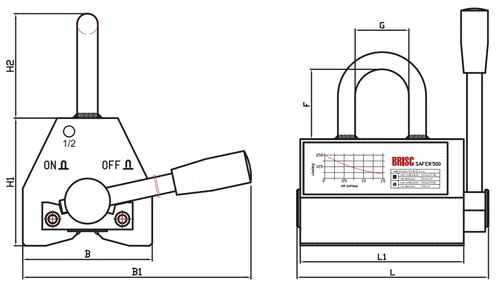

- Dimension B (inch): 3.94
- Dimension B1 (inch): 9.06
- Dimension L (inch): 7
- Dimension L1 (inch): 5.98
- Dimension H1 (inch): 3.9
- Dimension H2 (inch): 3.19
- Dimension F (inch): 2.56
- Dimension G (inch): 1.97
- Net Weight (lb): 17.6
- Max Plate Load (lb): 660
- Min Plate Load Thickness (inch): 0.79
- Max Plate Load Length (inch): 60
- Max Round Load (lb): 264
- Min Round Load Thickness (inch): 0.39
- Max Round Load Thickness (inch): 7.09
- Max Rounds Load Length (inch): 60
- Compact and light
- Suitable for flat and round material
- Maintenance free design
- Safety device prevent accidental deactivation
- Can be switched off by one hand only

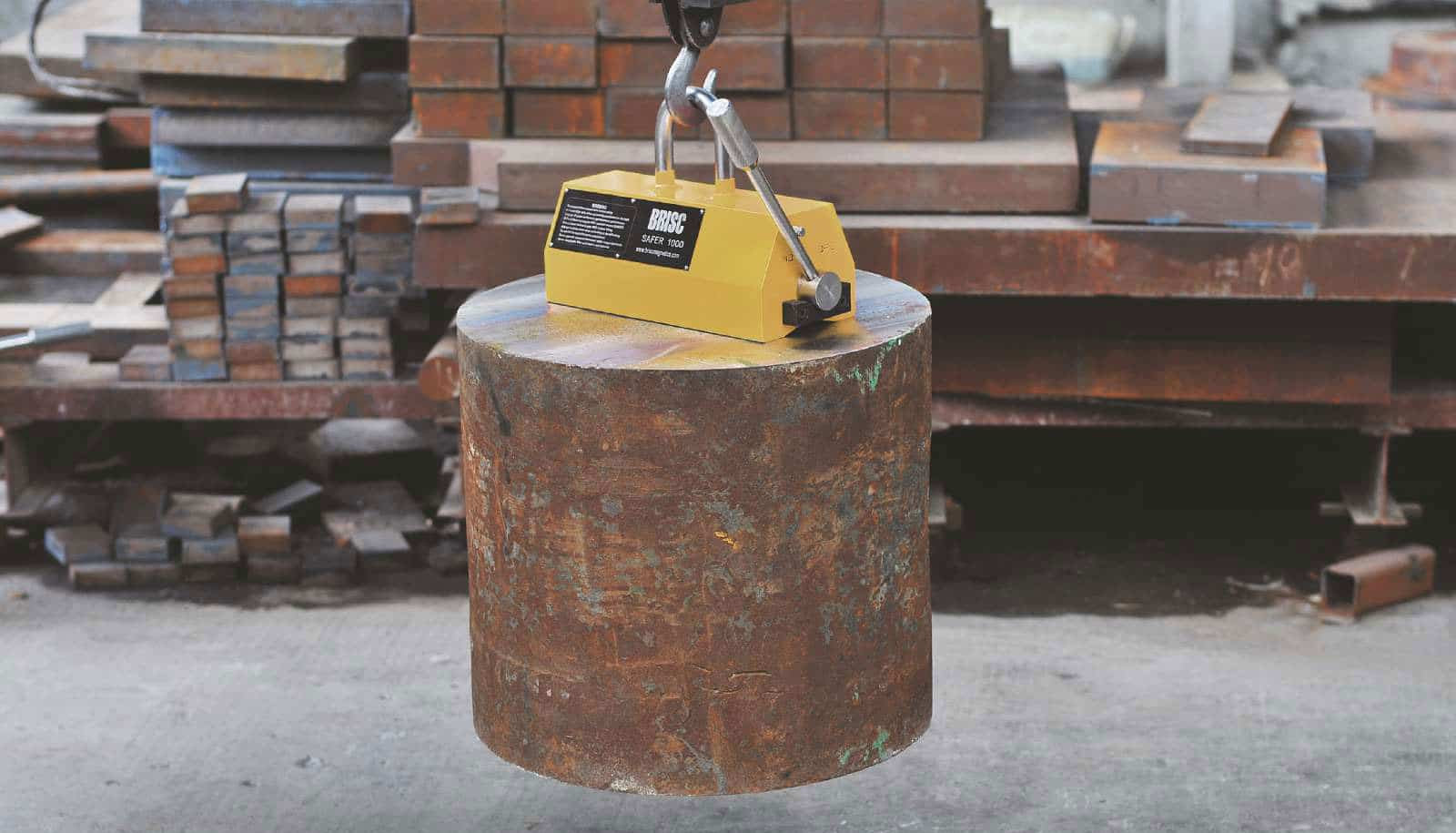

- Plate, bar, pipe, slab, block, mold, dies, castings and crop end material handling
