Effecto Manual Tool Changer Rated Payload (lb): 39.7
Effecto Manual Tool Changer Rated Payload (lb): 39.7
SKU: EM050
Brand: Effecto
Manual Tool Changer
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Rated Payload (lb): 39.7
- Tensile Force (lb): 157
- Compressive Force (lb): 18
- Operating Moment (in-lb): 620
- Repeatibility (in): 0.001
- Mass of Robot Side (lb): 0.55
- Mass of Tool Side (lb): 0.22
- Locking Force (lb): 0.9 – 11.2
- Locking Stroke (in): 0 – 0.04

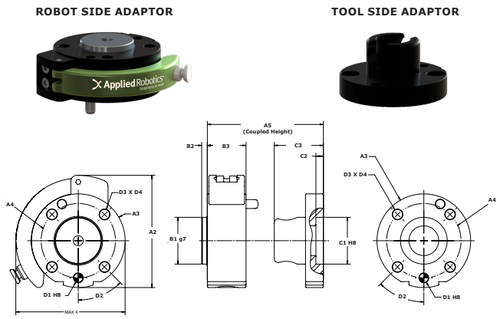

- Dim A1 (in): 2.89
- Dim A2 (in): 2.98
- Dim A3 (in): 2.48
- Dim A4 (in): 1.97
- Dim A5 (in): 1.50
- Dim B1 (in): 1.24
- Dim B2 (in): 0.15
- Dim B3 (in): 1.02
- Dim C1 (in): 1.24
- Dim C2 (in): 0.20
- Dim C3 (in): 1.30
- Dim D1 (in): 0.24
- Dim D2 (in): 45°
- Dim D3 (in): 4
- Dim D4-A (in): M6
- Dim D4-B (in): M8
- Integrated Operating Lever Makes it Toolless
- High Strength Aluminum Alloy Body
- High Energy Density (Payload to Weight Ratio)
- Intuitive Operation
- High Connection Repeatability
- Easy and Ergonomic Insertion
- Long Life (Over 5,000 Changes)
- Prevention Against Accidental Release
- Dual Safety Mechanism
- Optional Connection of Utility Modules
- Applied Robotics XCHANGETM manual tool changing technology allows for exchanging robotic end-of-arm tooling (EOAT) between operations. The integrated operating lever adds efficiency and simplicity to processes that require frequent connection/disconnection of tooling, while also reducing the probability of human errors introduced by tooled connection methods.
EM is a manual tool changer for exchanging robotic end-of-arm tooling (EOAT) between operations.
