Effecto Manual Tool Changer Rated Payload (lb): 114.6
Effecto Manual Tool Changer Rated Payload (lb): 114.6
SKU: EM125
Brand: Effecto
Manual Tool Changer
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information
- Rated Payload (lb): 114.6
- Tensile Force (lb): 450
- Compressive Force (lb): 141
- Operating Moment (in-lb): 2832
- Repeatibility (in): 0.001
- Mass of Robot Side (lb): 6.17
- Mass of Tool Side (lb): 2.65
- Locking Force (lb): 2.2 – 22.5
- Locking Stroke (in): 0 – 0.04

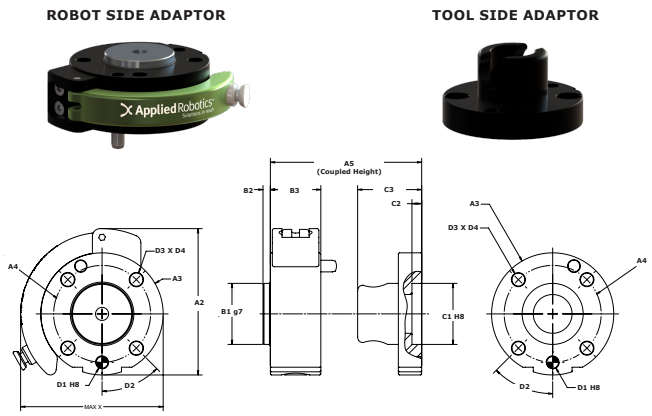

- Dim A1 (in): 6.85
- Dim A2 (in): 7.09
- Dim A3 (in): 6.30
- Dim A4 (in): 4.92
- Dim A5 (in): 2.76
- Dim B1 (in): 3.15
- Dim B2 (in): 0.15
- Dim B3 (in): 1.97
- Dim C1 (in): 3.15
- Dim C2 (in): 0.39
- Dim C3 (in): 2.52
- Dim D1 (in): 0.39
- Dim D2 (in): 30°
- Dim D3 (in): 6
- Dim D4-A (in): M10
- Dim D4-B (in): M12
- Integrated Operating Lever Makes it Toolless
- High Strength Aluminum Alloy Body
- High Energy Density (Payload to Weight Ratio)
- Intuitive Operation
- High Connection Repeatability
- Easy and Ergonomic Insertion
- Long Life (Over 5,000 Changes)
- Prevention Against Accidental Release
- Dual Safety Mechanism

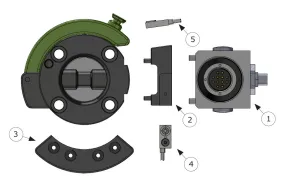

- Optional Connection of Utility Modules
- Applied Robotics XCHANGETM manual tool changing technology allows for exchanging robotic end-of-arm tooling (EOAT) between operations. The integrated operating lever adds efficiency and simplicity to processes that require frequent connection/disconnection of tooling, while also reducing the probability of human errors introduced by tooled connection methods.
EM is a manual tool changer for exchanging robotic end-of-arm tooling (EOAT) between operations.
