Eclipse Radial Pole Premier Chuck, Diameter (inch): 11.8
Eclipse Radial Pole Premier Chuck, Diameter (inch): 11.8
SKU: NR300C
Brand: Eclipse
Radial Pole Premier Chuck
This product is not available for online purchase as shipping costs must be custom quoted.
Request QuoteAdditional Information

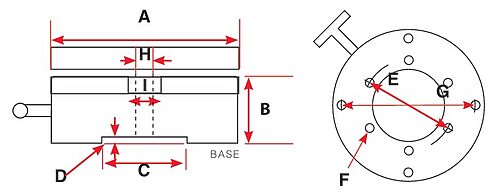

- A (inch): 11.8
- B (inch): 2.8
- C (inch): 0.24
- D (inch): 0.2
- E (inch): 7.2
- F (inch): M12
- G (inch): 10.0
- H (inch): 2.4
- I (inch): 2.6
- Number of Poles: 18
- Variable hold on both parallel and radial pole
- versions (Operating handle can be stopped in any position). Provides option of partial (variable) hold essential for clocking the work concentrically prior to switching to full power.
- Through bore: All sizes of the radial pole chucks from the 150mm diameter and above are supplied complete with a through bore.
- Radial Pole is radially balanced. While the switching principle is the same on all of the premier range the radial pole version uses a round magnet pack that rotates to switch. This ensures that the chucks stay in balance when rotating and can be spun up to a maximum of
- 3000rpm.
- Ideal for a wide range of precision grinding and
- medium/heavy turning applications, the radial pole
- is the best option for ring type applications such as
- inspection and precision grinding.
- The radial pole is the best option for heavy turning on
- ring type components.
- The design concentrates the entire magnetism from
- the chuck to the point in contact with the workpiece
- ensuring excellent hold.
- The workpiece on this type of chuck should not cover
- more than 50% of the pole area.
Quick, precise set up for grinding and turning processes.
Thick, all-metal top plate - high accuracy and long lifespan.
High corrosion resistance - resists damage from coolants.
Through bore - allows through flushing of coolant.
Can be rotated at up to 3000 rpm
