Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 750, Open Arm, Flanged Base, Steel
Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 750, Open Arm, Flanged Base, Steel
SKU: CL-650-LVTC
Brand: Carr Lane
Vertical Toggle Clamp
$68.00
Additional Information
- Clamping Force (lbf): 750
- Arm Type: Open Arm
- Base Type: Flanged Base
- Style: Steel
- Material: 1008, 1010, and/or 1018 Steel (Clamp Body),
- Finish: Zinc plated clear chromate
- Accepts any 3/8-16 or M10 spindle. Open-arm version supplied with (2) CL-3811-TW flanged washers. Solid-arm version supplied with CL-316000-BR weld-on bolt retainer.

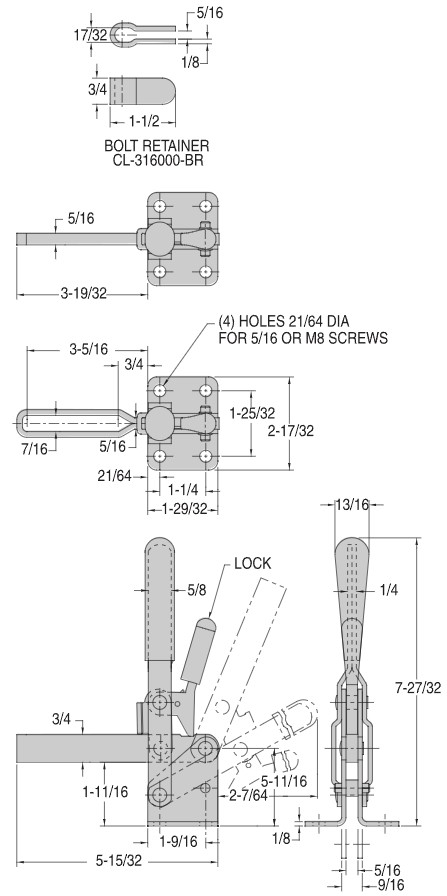

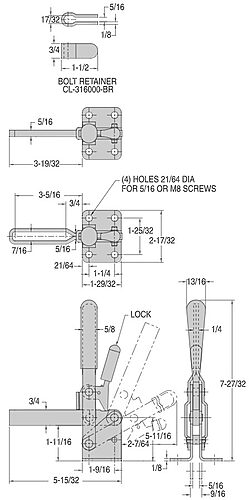

Safety-lock version of our CL-650-VTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Large wide-opening clamp, available in several configurations. Arm opens 106° while handle moves 58°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Available in in steel or stainless steel. 750 lbs holding capacity.
