Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 100, Tapped Plunger, Flanged Base, Stainless Steel, #8-32
Carr Lane, Vertical Toggle Clamp, Clamping Force (lbf): 100, Tapped Plunger, Flanged Base, Stainless Steel, #8-32
SKU: CL-50-SPC-S
Brand: Carr Lane
Vertical Toggle Clamp
$43.96
Additional Information
- Clamping Force (lbf): 100
- Plunger Type: Tapped Plunger
- Base Type: Flanged Base
- Style: Stainless Steel
- Tapped Hole in Plunger: #8-32
- Material: 300-Series Stainless (Clamp Body),
- Finish: N/A
- Steel tapped-plunger version supplied with #8-32 nylon hex-head spindle CL-832203-SA (M4 nylon hex-head spindle CLM-416-SA in metric). Stainless steel tapped-plunger version supplied with #8-32 stainless hex-head spindle CL-83234-SA. For alternative clamping spindles, or to order an optional bracket for 90° mounting, Contact Us.

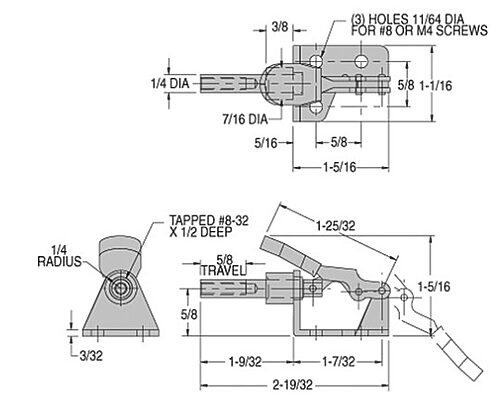

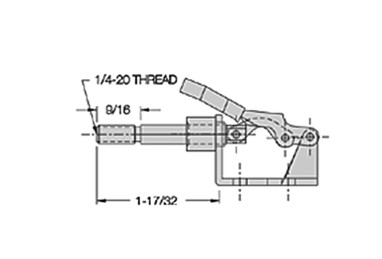

Miniature plunger clamp, perfect for electronics fixturing and other light-duty applications. Locks in extended or retracted position. 5/8" plunger travel. Choice of #8-32 tapped plunger (M4 in metric) or 1/4-20 externally threaded plunger. Available in in steel or stainless steel. 100 lbs holding capacity.
