Carr Lane T Pin, 3/8 Inch Shank Diameter
Additional Information

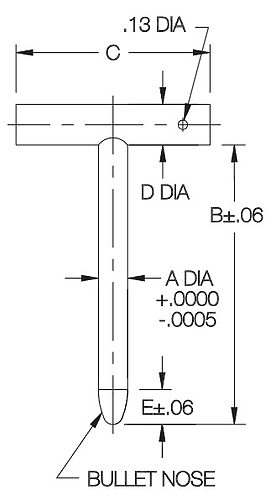

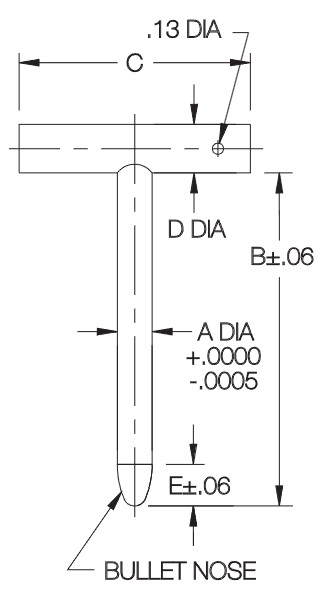

- A DIA NOMINAL (inch): 3/8
- A DIA ACTUAL (inch): .3750
- B (inch): 3
- C (inch): 2-1/2
- D DIA (inch): 1/2
- E (inch): 1/2
- Material: 1215 Steel
- Heat Treat: Carburized-Hardened
- Finish: Black Oxide

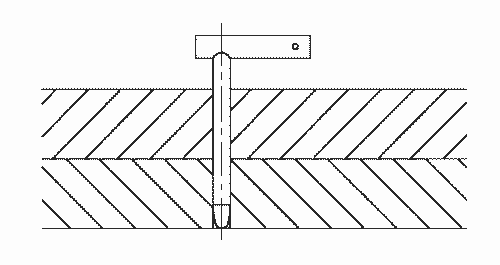

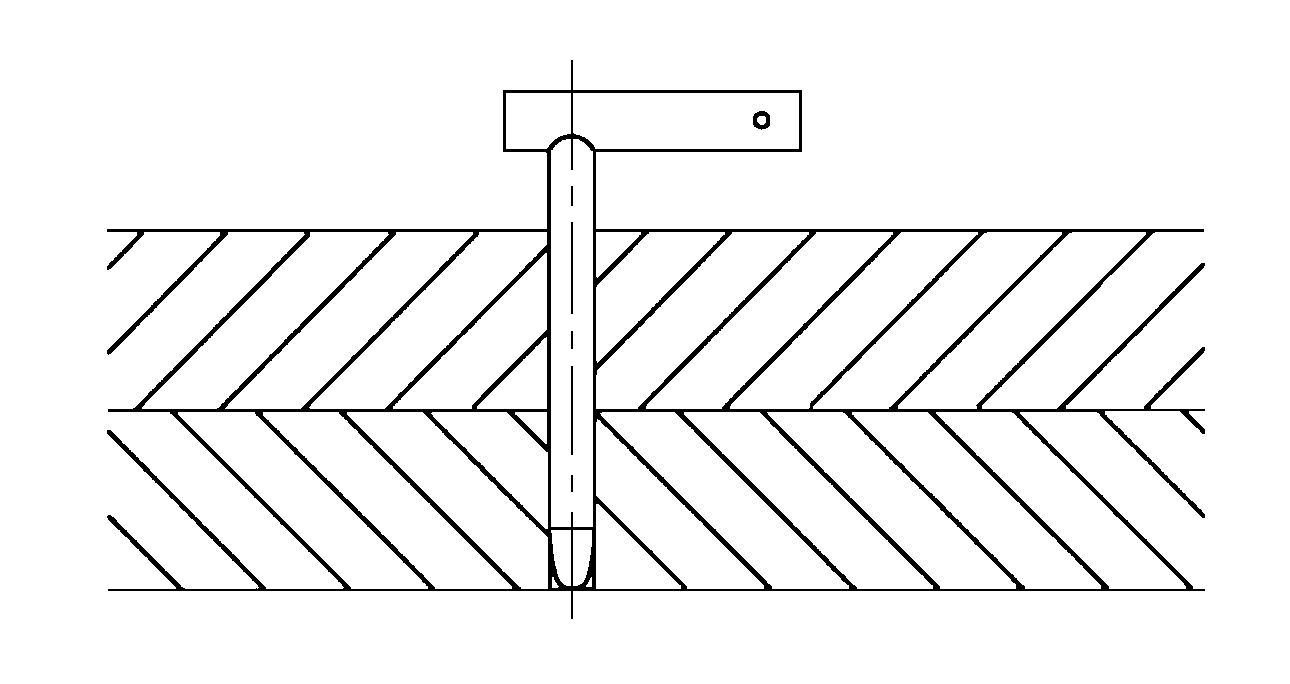

- T Pins can be used for accurately aligning two plates
T Pins are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Available in pin diameters from 1/8 to 3/4", including some number and letter sizes (4 to 20mm in metric), most in a choice of several pin lengths. Made in USA.
