Carr Lane, Right-Angle Toggle Clamp, Holding Capacity (lbf): 1000, Stainless Steel, Flanged Base
Carr Lane, Right-Angle Toggle Clamp, Holding Capacity (lbf): 1000, Stainless Steel, Flanged Base
SKU: CL-210-PA-S
Brand: Carr Lane
Right-Angle Toggle Clamp
$55.88
Additional Information
- Holding Capacity (lbf): 1000
- Style: Stainless Steel
- Base Type: Flanged Base
- Replacement U Bolt: CL-210-PA-S-UBOLT
- Replacement Latch Plate: CL-210-PA-S-L
- Material: 300-Series Stainless (Clamp Body)
- Finish: N/A
- Steel clamps are supplied with matching latch plate CL-210-PA-L. For a replacement U bolt, order CL-210-PA-UBOLT. Stainless steel clamps are supplied with matching latch plate CL-210-PA-S-L. For a replacement U bolt, order CL-210-PA-S-UBOLT.

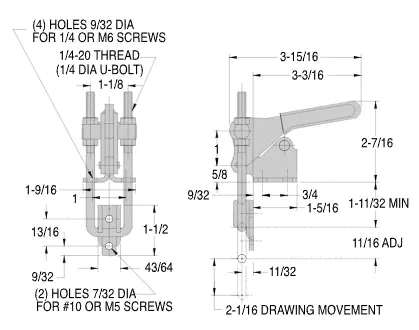

Versatile latch clamp with a threaded U bolt for adjustability. Pulling direction is perpendicular to the base. Large, comfortable handle grip. 2-1/16" drawing movement. Threaded U bolt allows an 11/16" adjustment range. Available in in steel or stainless steel. Supplied with matching latch plate. 1000 lbs holding capacity.
